Ohlins Road & Track DFV Coilovers - Porsche 911 Carrera / Targa / Turbo 2020-2024

Ohlins SKU: OHLPOS MU10S1
Price
Regular price $4,800.00
Regular price Sale price $4,800.00
Only 6 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandOhlins
SKUOHLPOS MU10S1
GTIN / UPC840153620003
Manufacturer Part NumberPOS MU10S1

Product Information

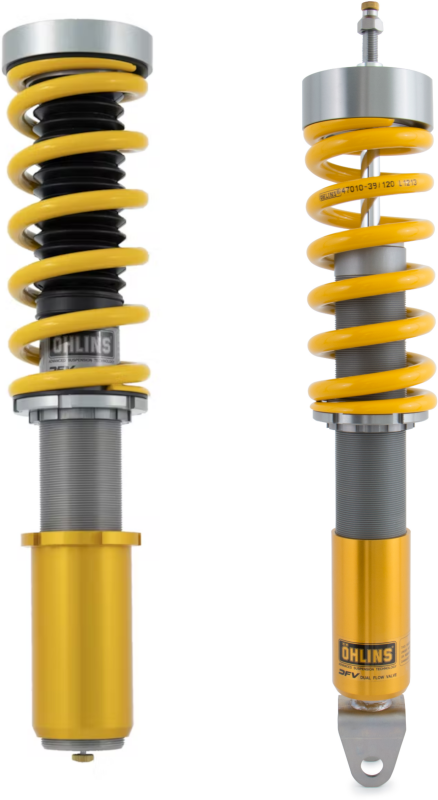

Ohlins Road & Track coilovers use Dual Flow Valve (DFV) dampers, so a single adjuster on each damper changes compression and rebound together while ride height and spring preload adjust separately. This kit runs 70 N/mm front and 140 N/mm rear springs and lowers the car by about 10 to 20 mm with the recommended setup. The front uses an inverted (upside down) McPherson strut and the rear a conventional shock absorber. The kit includes an extension kit and reuses the original top mounts. The dampers are rebuildable and salt spray tested to ISO 9227.

Specifications

Type Coilover suspension kit (front and rear)
Series Road & Track (DFV)
Position Front and rear
Damping Adjustment One adjuster per damper sets compression and rebound together (Dual Flow Valve)
Adjustability Damping, ride height and spring preload
Front Spring Rate 70 N/mm (400 lb/in)
Rear Spring Rate 140 N/mm (799 lb/in)
Springs Included Yes
Lowering Range Approx. 10 to 20 mm front and rear with the recommended setup
Top Mounts Reuses the original top mounts
Damper Layout Inverted McPherson strut front, conventional shock rear
Rebuildable Yes
Electronic Damping Cars with PASM need cancellation kit 35020-07, sold separately
What's in the Box
  • Coilover kit with springs
  • Mounting hardware and extension kit
Fitment Notes 992 Carrera, Targa and Turbo models, coupe, Targa and cabriolet. Not for GT3 or GT3 RS, and not for cars with the front axle lift system.
Pairs With Ohlins PASM cancellation kit 35020-07
Intended Use Street and track days
Quantity 1 kit
Warranty 2 year limited (defects in materials or workmanship)
Part Number POS MU10S1

This part fits:

Year Make Model Submodel
2020-2024 Porsche 911 Carrera
2020-2024 Porsche 911 Carrera 4
2022-2024 Porsche 911 Carrera 4 GTS
2020-2024 Porsche 911 Carrera 4S
2022-2024 Porsche 911 Carrera GTS
2020-2024 Porsche 911 Carrera S
2023-2024 Porsche 911 Carrera T
2021-2024 Porsche 911 Targa 4
2022-2024 Porsche 911 Targa 4 GTS
2021-2024 Porsche 911 Targa 4S
2021-2024 Porsche 911 Turbo
2021-2024 Porsche 911 Turbo S

Documents: Installation Instructions (PDF) | Owner's Manual (PDF)

Are springs included?

  • Yes. The kit comes with springs and mounting parts, so it installs as a complete front and rear coilover set.

How is the damping adjusted?

  • Each damper has one adjuster that changes compression and rebound together through the Dual Flow Valve, so the setup stays balanced from soft road settings to firm track settings.

How much does it lower the car?

  • About 10 to 20 mm with the recommended setup, front and rear.

Does my car need a cancellation kit?

  • Cars with PASM need Ohlins cancellation kit 35020-07, sold separately.

Does it fit a 992 with front axle lift?

  • No. The kit is not for cars with the front axle lift system.
