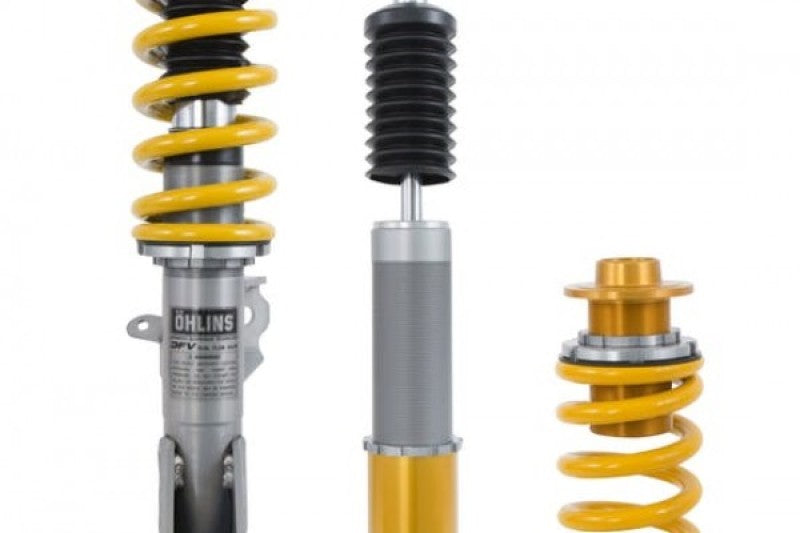

Ohlins Road & Track DFV Coilovers, yellow springs and shock parts, laid out

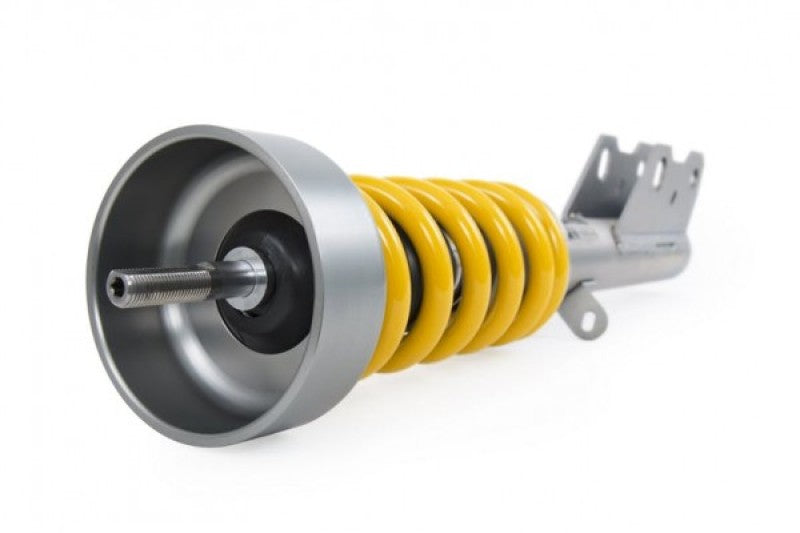

Ohlins Road & Track DFV Coilovers, yellow spring, angled view

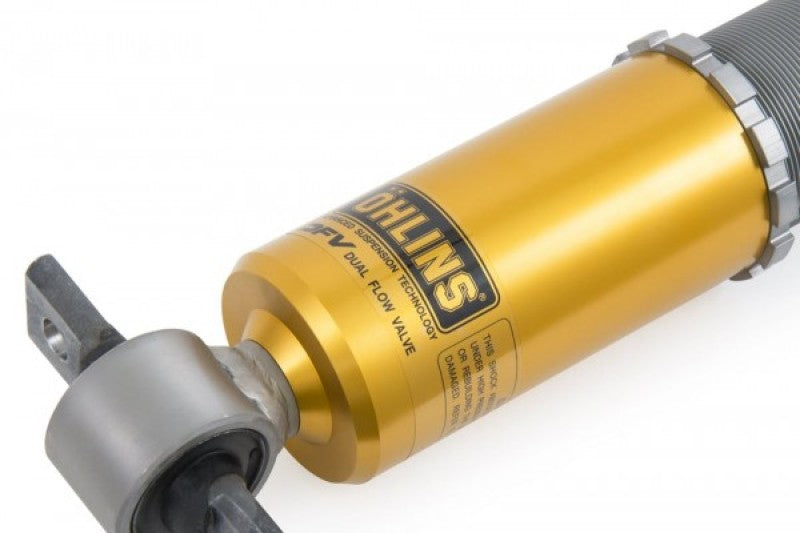

Ohlins Road & Track DFV Coilovers, gold shock body, close up
Ohlins Road & Track DFV Coilovers, front unit, rear damper and spring laid out
Ohlins Road & Track DFV Coilovers, front unit, rear damper and spring laid out, alternate shot
Ohlins Road & Track DFV Coilovers, gold and gray shock, side view
Ohlins Road & Track DFV Coilovers, yellow springs and shock parts, laid out
Ohlins Road & Track DFV Coilovers, yellow spring, angled view
Ohlins Road & Track DFV Coilovers, gold shock body, close up
Ohlins Road & Track DFV Coilovers, front unit, rear damper and spring laid out
Ohlins Road & Track DFV Coilovers, front unit, rear damper and spring laid out, alternate shot

Ohlins Road & Track DFV Coilovers - Ford Mustang 2015-2023

Ohlins SKU: OHLFOS MR00S1
Price
Special Order – Contact Us for Lead Time
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandOhlins
SKUOHLFOS MR00S1
GTIN / UPC840153600128
Manufacturer Part NumberFOS MR00S1

Product Information

Ohlins Road & Track coilovers use Dual Flow Valve (DFV) dampers, so a single adjuster on each damper changes compression and rebound together while ride height and spring preload adjust separately. This kit runs 90 N/mm front and 140 N/mm rear springs and lowers the car by about 25 mm with the recommended setup. The front uses an inverted (upside down) McPherson strut and the rear a conventional shock absorber. The kit reuses the original top mounts. The dampers are rebuildable and salt spray tested to ISO 9227.

Specifications

Type Coilover suspension kit (front and rear)
Series Road & Track (DFV)
Position Front and rear
Damping Adjustment One adjuster per damper sets compression and rebound together (Dual Flow Valve)
Adjustability Damping, ride height and spring preload
Front Spring Rate 90 N/mm (514 lb/in)
Rear Spring Rate 140 N/mm (799 lb/in)
Springs Included Yes
Lowering Range Approx. 25 mm front and rear with the recommended setup
Top Mounts Reuses the original top mounts
Damper Layout Inverted McPherson strut front, conventional shock rear
Rebuildable Yes
Electronic Damping Not for cars with MagneRide
What's in the Box
  • Coilover kit with springs and mounting parts
  • C-spanner for spring preload
  • Owner's manual and mounting instruction
  • Sticker set
Fitment Notes S550 coupe and convertible. Not for cars with MagneRide, including the Shelby GT350, GT350R, GT500 and Mach 1.
Intended Use Street and track days
Quantity 1 kit
Warranty 2 year limited (defects in materials or workmanship)
Part Number FOS MR00S1

This part fits:

Year Make Model Submodel
2019-2020 Ford Mustang Bullitt
2015-2023 Ford Mustang EcoBoost
2015-2023 Ford Mustang EcoBoost Premium
2015-2023 Ford Mustang GT
2015 Ford Mustang GT 50 Years Limited Edition
2015-2023 Ford Mustang GT Premium
2015-2017 Ford Mustang V6

Documents: Installation Instructions (PDF) | Owner's Manual (PDF)

Are springs included?

  • Yes. The kit comes with springs and mounting parts, so it installs as a complete front and rear coilover set.

How is the damping adjusted?

  • Each damper has one adjuster that changes compression and rebound together through the Dual Flow Valve, so the setup stays balanced from soft road settings to firm track settings.

How much does it lower the car?

  • About 25 mm with the recommended setup, front and rear.

Does it fit a Mustang with MagneRide?

  • No. The kit is for Mustangs without MagneRide, so it does not fit the Shelby GT350, GT350R, GT500, Mach 1 or other MagneRide cars.

Do I need new top mounts?

  • No. The kit is designed to reuse the original top mounts.
