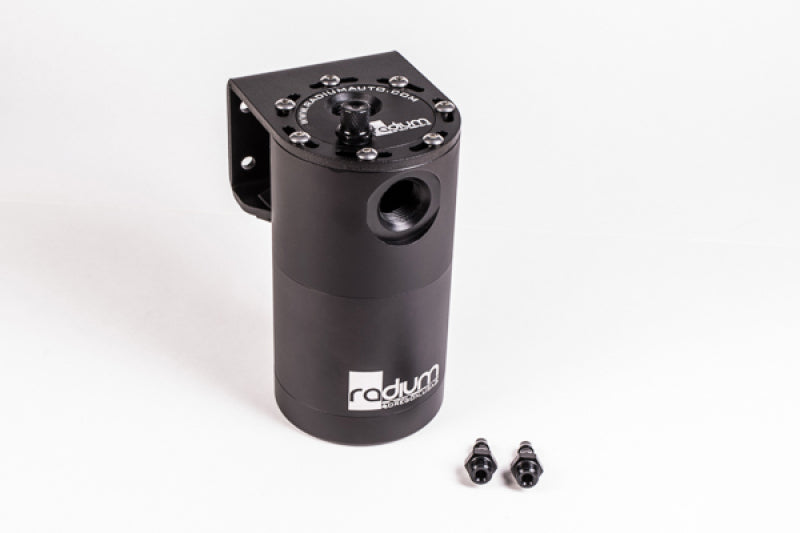

Radium Air/Oil Separator Kit, black canister, angled view
Radium Air/Oil Separator Kit, can, bracket, fittings and green parts laid out
Radium Air/Oil Separator Kit, black canister, angled view
Radium Air/Oil Separator Kit, can, bracket, fittings and green parts laid out

Radium Engineering AOS-R Air Oil Separator 10AN ORB - Vent to Engine

Radium Engineering SKU: RAD20-0219
Price
5% OFF
Only 5 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandRadium Engineering
SKURAD20-0219
Manufacturer Part Number20-0219

Product Information

An air oil separator that pulls oil out of crankcase blow-by and drains it back into the oil pan above the oil level, so there is no can to empty. Engine coolant runs through a heating chamber that keeps the unit warm to stop water condensing inside, and a water trap around the base keeps condensation out of the pan. This vent-to-engine version sends the cleaned air back into the intake or turbo inlet, which is the setup a mass-air-flow engine needs. The 10AN ORB ports accept a range of adapter fittings chosen to suit the hose used.

Specifications

Type Air oil separator with oil return, vent to engine (VTE)
Ports Inlet (top), outlet (side) and oil return: 7/8in-14 for 10AN ORB fittings; coolant: two 7/16in-20 ports
What's in the Box
  • Air oil separator
  • 2 coolant barb fittings, 7 mm (5/16 in)
Warranty 1 year limited

Can it be serviced?

  • Yes. A dipstick unscrews to check the fluid level, and the billet unit comes apart in three large pieces for cleaning. With a working return line it should be empty after the engine sits.

Is there a vent-to-atmosphere version?

  • Yes, part 20-0819 vents through its top and has two inlet ports for dual-bank engines, but it is not recommended for mass-air-flow engines.
