Details
BrandRadium Engineering
SKURAD20-0759-FL
Manufacturer Part Number20-0759-FL
Product Information
A direct-fit crankcase vent (CCV) catch can kit for the GR Corolla, all models and trims. The can runs inline between the CCV port on the valve cover and the turbo inlet port, catching oil during high-load driving when crankcase vapor flows into the intake, and returns filtered air to the intake. It holds 7 fl oz with 2-step baffling, 10AN ORB inlet and outlet ports, a 4AN ORB drain and an O-ring sealed dipstick, and it mounts to threaded studs on the right-hand strut tower without permanent modification. It works with the factory engine cover.
Specifications
| Type |
Oil catch can kit |
| Series |
Fluid Lock |
| Circuit |
CCV |
| Vent Type |
Vents to engine (closed system) |
| Can Type |
Fluid Lock (standard) |
| Material |
Aluminum |
| Capacity |
7 fl oz per can |
| Ports |
10AN ORB inlet and outlet, 4AN ORB bottom drain |
| Baffling |
2-step oil separation baffling, O-ring sealed integrated dipstick |
| Hose / Fitting Size |
10AN to SAE quick connect adapter fittings, SAE quick connect hose ends |

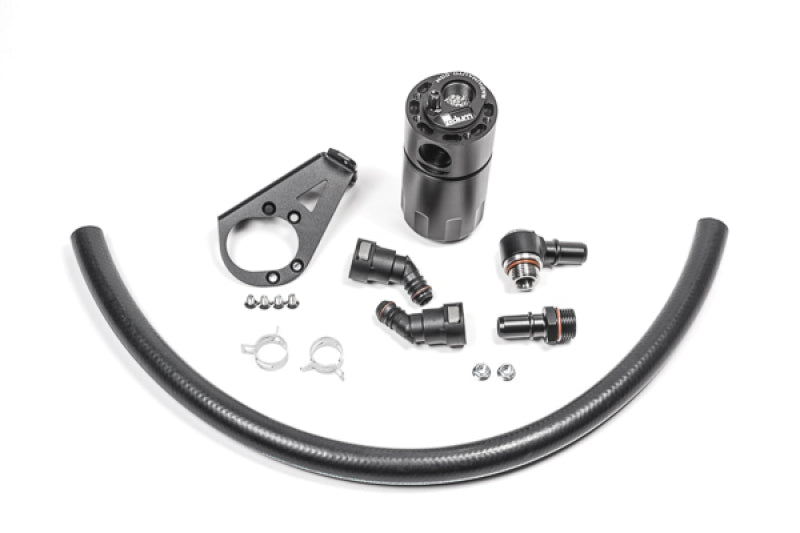

| What's in the Box |
- Baffled Fluid Lock catch can with dipstick
- GR Corolla mounting bracket
- 10AN to SAE quick connect fittings
- SAE quick connect hose ends
- Stainless steel hardware
- Radium PCV hose
|
| Fitment Notes |
All GR Corolla models and trims; a check engine light can trigger in some installations, and some aftermarket intakes can trigger a crankcase ventilation light on their own |
| Install |
Direct fit, no drilling or permanent modification; mounts to the RH strut tower studs; compatible with the OEM engine cover |
| Quantity |
1 |
| Warranty |
1 year limited, from date of original purchase |
| Part Number |
20-0759-FL |
This part fits:
| Year |
Make |
Model |
Submodel |
| 2023-2024 |
Toyota |
GR Corolla |
Circuit Edition |
| 2023-2026 |
Toyota |
GR Corolla |
Core |
| 2023 |
Toyota |
GR Corolla |
Morizo Edition |
| 2024-2026 |
Toyota |
GR Corolla |
Premium |
| 2025-2026 |
Toyota |
GR Corolla |
Premium Plus |
Documents: Installation Instructions (PDF)
