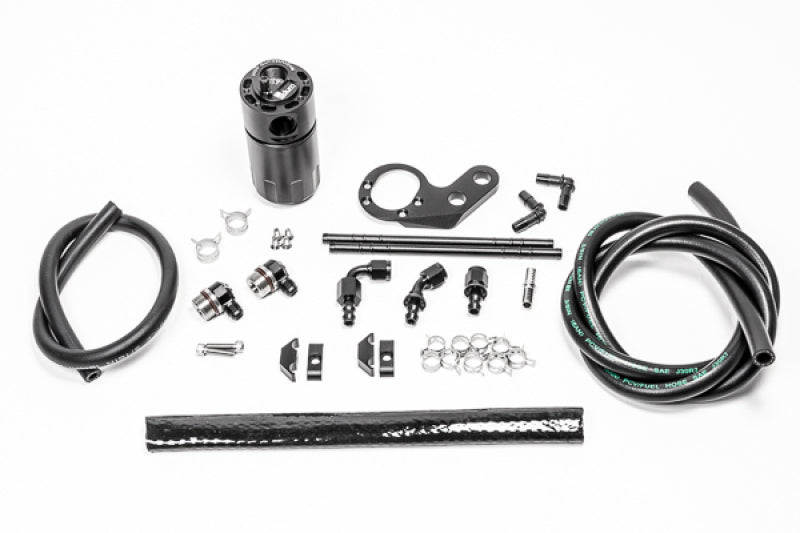

Radium Engineering Fluid Lock CCV Catch Can Kit, canister with hoses and fittings laid out

Radium Engineering Fluid Lock CCV Catch Can Kit - Honda Civic Type R / Acura Integra Type S 2017-2026

Radium Engineering SKU: RAD20-0825-FL
Price
5% OFF
Only 2 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandRadium Engineering
SKURAD20-0825-FL
Manufacturer Part Number20-0825-FL

Product Information

A direct-fit crankcase vent (CCV) catch can kit for the FK8 and FL5 Civic Type R and the Integra Type S. The can runs inline with the crankcase vent port and mounts to the right-hand motor mount, fitting under the factory engine cover with no modifications; vent lines run over the engine and clamp to the turbo inlet pipe with temperature-resistant metal tubes. It holds 7 fl oz with 2-step baffling, an integrated condenser and an O-ring sealed dipstick, with 10AN ORB inlet and outlet ports and a 4AN ORB drain.

Specifications

Type Oil catch can kit
Series Fluid Lock
Circuit CCV
Vent Type Vents to engine (closed system)
Can Type Fluid Lock (standard)
Material Anodized aluminum
Capacity 7 fl oz per can
Ports 10AN ORB inlet and outlet, 4AN ORB bottom drain
Baffling 2-step oil separation baffling, integrated condenser, O-ring sealed dipstick
Hose / Fitting Size 10AN; anodized aluminum AN adapter fittings and hose ends
What's in the Box
  • Anodized catch can with integrated condenser and dipstick
  • Anodized aluminum Civic Type R mounting bracket
  • Anodized aluminum AN adapter fittings and hose ends
  • PCV hose
  • Stainless steel hardware
Fitment Notes FK8 and FL5 Civic Type R, DE5 Integra Type S; LHD only; an aftermarket motor mount may need minor modification; covers the CCV side only (pair with the PCV kit 20-0424-FL)
Install Direct fit under the OEM engine cover, no modifications; mounts to the RH motor mount
Quantity 1
Warranty 1 year limited, from date of original purchase
Part Number 20-0825-FL

This part fits:

Year Make Model Submodel
2024-2026 Acura Integra Type S
2017-2021, 2023-2026 Honda Civic Type R
2021 Honda Civic Type R Limited Edition

Documents: Installation Instructions (PDF)

Does it fit with an aftermarket motor mount?

  • An aftermarket motor mount may require minor modifications.

Does it fit under the factory engine cover?

  • Yes. The CCV kit fits under the OEM engine cover with no modifications.

Does it fit the Acura Integra Type S?

  • Yes. It fits the 2024 and later Integra Type S (DE5), left-hand drive only.

How often does the catch can need to be emptied?

  • There is no set interval. Check the level with the integrated dipstick starting at 3 to 4 weeks of driving, then set your interval from what you find. Empty it by unscrewing the lower reservoir, or add the Catch Can Petcock Drain Kit where there is room under the can.

Is there a warranty?

  • Yes. Radium Engineering products carry a 1 year limited warranty from the date of original purchase against defects in materials and workmanship.
