Details
BrandRadium Engineering
SKURAD20-1106-FL
Manufacturer Part Number20-1106-FL
Product Information
A direct-fit crankcase vent (CCV) catch can kit for every Evolution X, with metal or plastic valve covers. The can mounts directly behind the left-hand headlight and plumbs inline with the CCV hose that runs from the valve cover to the turbo air intake pipe. It holds 7 fl oz with 2-step baffling, an integrated condenser and an O-ring sealed dipstick, with 10AN ORB inlet and outlet ports and a 4AN ORB drain.
Specifications
| Type |
Oil catch can kit |
| Series |
Fluid Lock |
| Circuit |
CCV |
| Vent Type |
Vents to engine (closed system) |
| Can Type |
Fluid Lock (standard) |
| Material |
Aluminum |
| Capacity |
7 fl oz per can |
| Ports |
10AN ORB inlet and outlet, 4AN ORB bottom drain |
| Baffling |
2-step oil separation baffling, O-ring sealed integrated dipstick |
| Hose / Fitting Size |
6AN and 8AN aluminum hose ends and adapter fittings |

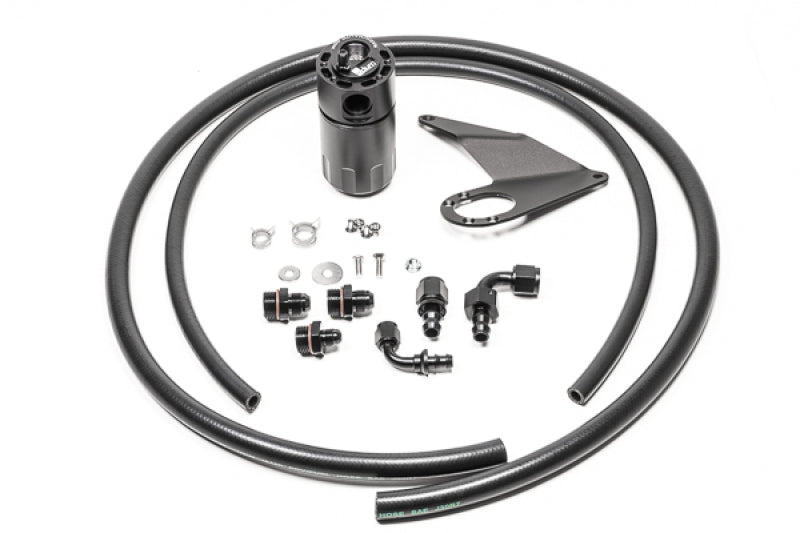

| What's in the Box |
- Fluid Lock billet catch can with integrated condenser and dipstick
- Powder coated laser cut bracket
- 6AN and 8AN aluminum hose ends and adapter fittings
- Extra 3/8in and 1/2in PCV hose
- Stainless steel mounting hardware (LH bracket)
|
| Fitment Notes |
All Evolution X models and years, metal and plastic valve covers; if the can interferes with other parts such as an aftermarket intake, the 20-0300 alternate mount relocates it |
| Install |
Direct fit, no drilling; mounts behind the LH headlight |
| Quantity |
1 |
| Warranty |
1 year limited, from date of original purchase |
| Part Number |
20-1106-FL |
This part fits:
| Year |
Make |
Model |
Submodel |
| 2008-2015 |
Mitsubishi |
Lancer Evolution |
GSR |
| 2008-2015 |
Mitsubishi |
Lancer Evolution |
MR |
| 2015 |
Mitsubishi |
Lancer Evolution |
Final Edition |
Documents: Installation Instructions (PDF)
