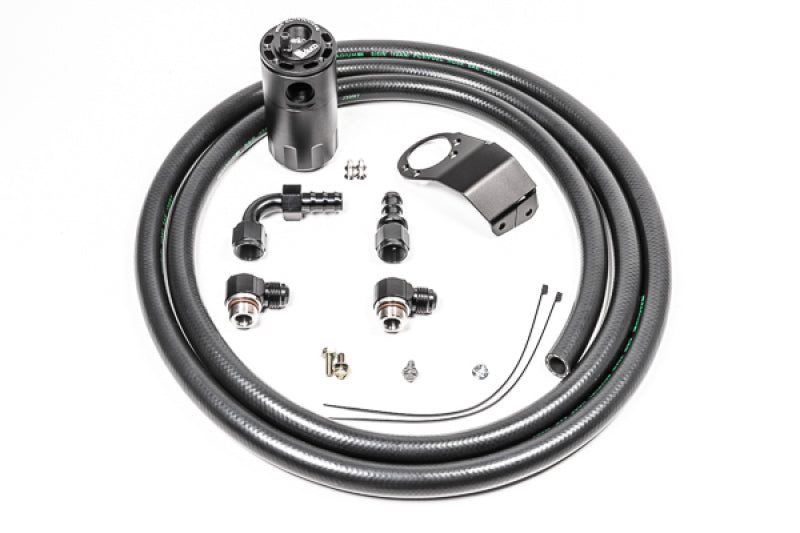

Radium Engineering Fluid Lock CCV Catch Can Kit, single canister with hose and fittings

Radium Engineering Fluid Lock CCV Catch Can Kit - Nissan 240SX 1989-1994

Radium Engineering SKU: RAD20-0726-FL
Price
5% OFF
Special Order – Contact Us for Lead Time
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandRadium Engineering
SKURAD20-0726-FL
Manufacturer Part Number20-0726-FL

Product Information

A crankcase vent (CCV) catch can kit for the S13 Nissan 240SX. The Fluid Lock can mounts to two holes on the left side of the unibody near the firewall, connects to the factory valve cover barb and runs inline to the intake pipe; it was shaped to clear the wiper motor on right-hand drive cars and the master cylinders on left-hand drive cars. It holds 7 fl oz with 2-step baffling, 10AN ORB inlet and outlet ports, a 4AN ORB drain and an O-ring sealed dipstick.

Specifications

Type Oil catch can kit
Series Fluid Lock
Circuit CCV (crankcase vent)
Vent Type Vents to engine (closed system)
Can Type Fluid Lock (standard)
Capacity 7 fl oz per can
Ports 10AN ORB inlet and outlet, 4AN ORB bottom drain
What's in the Box
  • Baffled Fluid Lock catch can
  • Nissan-specific mounting bracket
  • AN adapter fittings and hose ends
  • Stainless hardware
  • Radium PCV hose
Fitment Notes All 240SX models and trims, left- and right-hand drive. Japan-market Silvia, 180SX and 200SX also fit, except CA18DET engines. SR20DET valve cover fittings (20-0811) sold separately.
Install Direct fit, no drilling; mounts on the left side near the firewall
Quantity 1
Warranty 1 year limited, from date of original purchase
Part Number 20-0726-FL

This part fits:

Year Make Model Submodel
1989-1991, 1993-1994 Nissan 240SX SE
1989-1990 Nissan 240SX XE
1991-1993 Nissan 240SX Base
1991 Nissan 240SX LE

Documents: Installation Instructions (PDF)

Does this handle PCV-side blow-by?

  • No. The CCV kit covers the crankcase vent line only; the PCV kit (20-0725-FL) or dual kit (20-0727-FL) covers the PCV side.

How often does the catch can need to be emptied?

  • There is no set interval. Check the level with the integrated dipstick starting at 3 to 4 weeks of driving, then set your interval from what you find. Empty it by unscrewing the lower reservoir, or add the Catch Can Petcock Drain Kit where there is room under the can.

What does the Fluid Lock design do?

  • An internal mechanism keeps the reservoir from overfilling and traps the collected fluid until the can is emptied, so oil is not pulled back into the intake.

Does it fit an SR20DET swap?

  • Yes. An optional SR20DET valve cover fitting set (20-0811) is sold separately for the crankcase vent connection.

Is there a warranty?

  • Yes. Radium Engineering products carry a 1 year limited warranty from the date of original purchase against defects in materials and workmanship.
