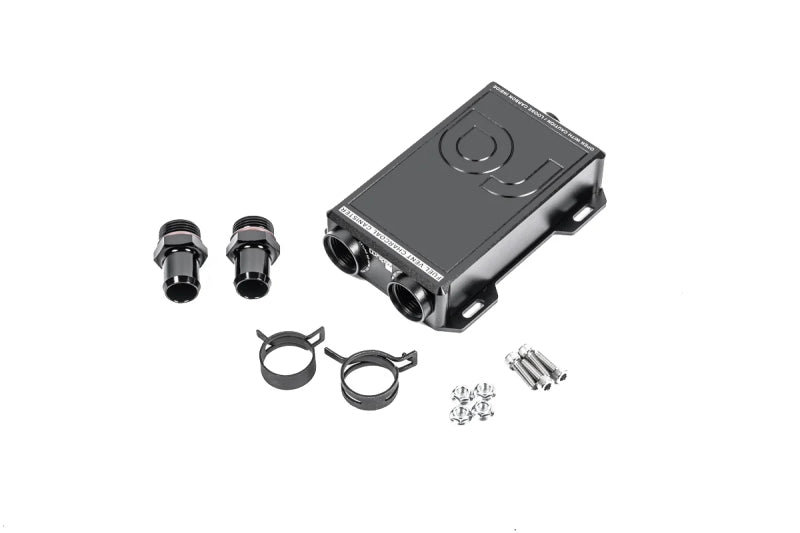

This canister installs inline with a fuel tank or fuel cell vent hose and traps the vapors that would otherwise fill an enclosed garage or trailer with fuel smell. The body is CNC machined from 6061 aluminum and type II anodized, and inside it holds vibratory packed activated carbon behind a 150 micron strainer and an anodized baffle that keeps loose carbon from escaping. Both end ports are 1-5/16"-12 ORB female and interchangeable, so the canister flows in either direction with negligible restriction, and two plugged 7/16"-20 ORB drain ports sit at the bottom. This is the high flow version, shipping with barb adapters for 3/4 in (12AN) vent hose, and its outlet barb accepts the Radium 18-0042 air filter directly. The carbon media is serviceable.
| Type | Compact inline fuel vent charcoal canister, high flow |
| Material | CNC machined 6061 aluminum, type II anodized |
| Ports | 2 x 1-5/16"-12 ORB female (interchangeable inlet and outlet); 2 x 7/16"-20 ORB plugged drain ports |
| Hose Size | 3/4 in (12AN) barb adapters included |
| Media | Vibratory packed activated carbon behind a 150 micron strainer and anodized baffle; serviceable |
| Size | 88.9mm W x 142.6mm H x 32.4mm D |
| Mounting | Slotted tabs, 4 x M5 bolts and flange nuts included |
| Pairs With | Radium 18-0042 air filter (sold separately) |
| Quantity | 1 |
| Part Number | 20-1827-12 |
| Warranty | 1 year limited |
Documents: Installation Instructions (PDF)
