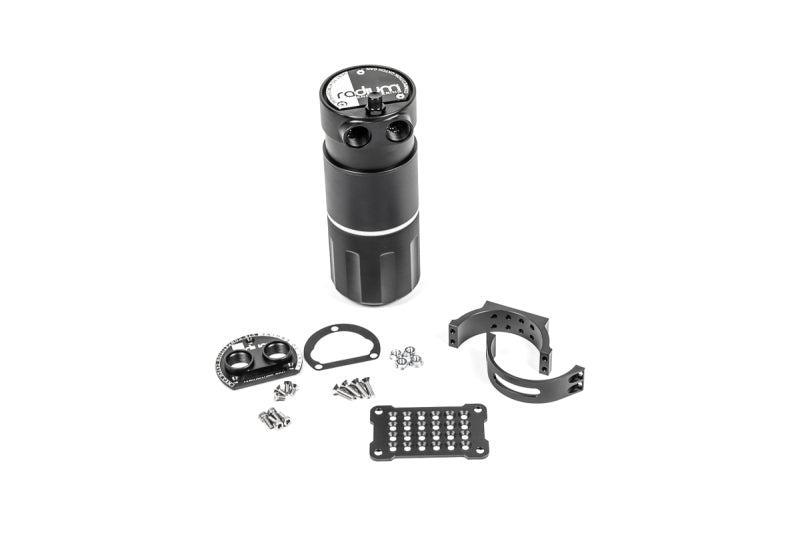

Radium Engineering Competition Catch Can XL, black canister with brackets and hardware

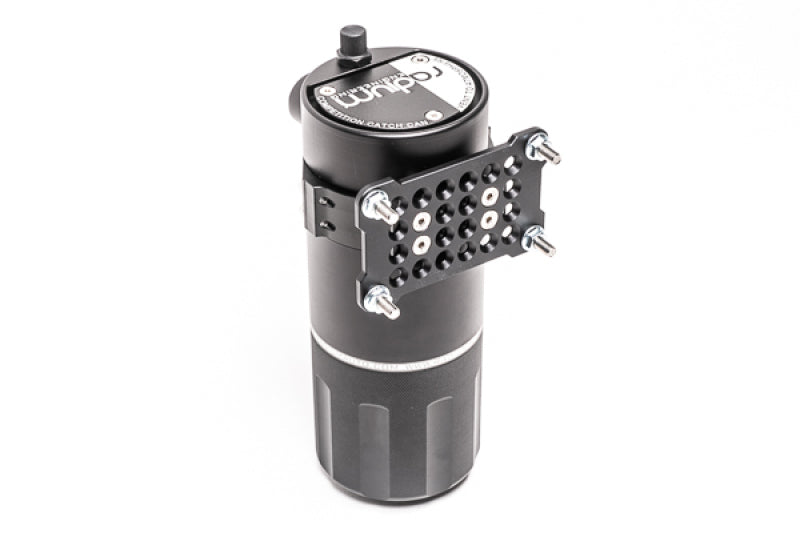

Radium Engineering Competition Catch Can XL, black canister, front view

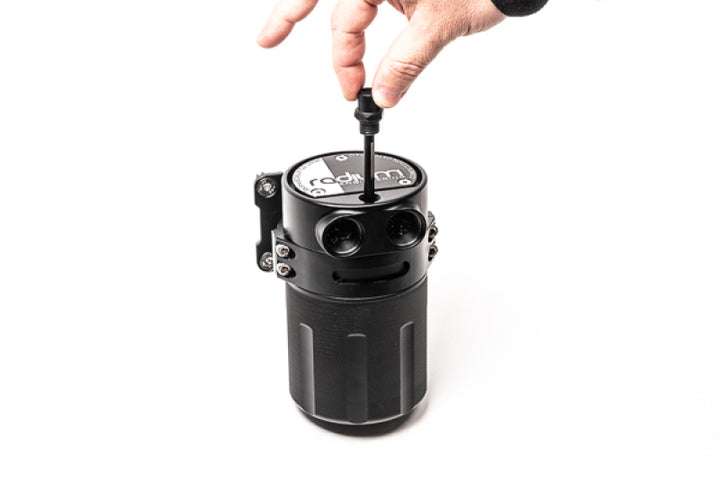

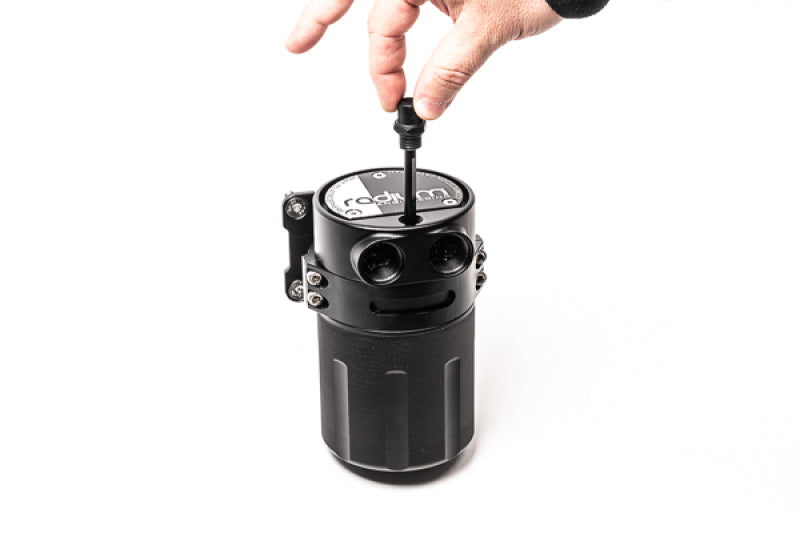

Radium Engineering Competition Catch Can XL, black canister, hand opening lid

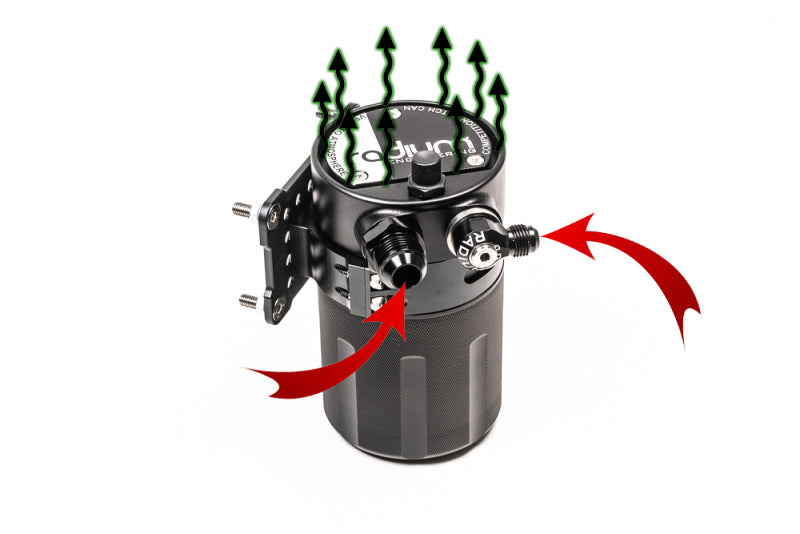

Radium Engineering Competition Catch Can XL, airflow diagram
Radium Engineering Competition Catch Can XL, black canister with brackets and hardware
Radium Engineering Competition Catch Can XL, black canister, front view
Radium Engineering Competition Catch Can XL, black canister, hand opening lid
Radium Engineering Competition Catch Can XL, airflow diagram

Radium Engineering Competition Catch Can XL - 0.9L, Universal

Radium Engineering SKU: RAD20-1771
Price
5% OFF
Only 6 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandRadium Engineering
SKURAD20-1771
Manufacturer Part Number20-1771

Product Information

A universal 1 quart (0.9L, 32 fl oz) catch can for high powered engines that meets the common 1 quart minimum capacity rule of SCCA, NASA and Formula Drift. It ships vented to atmosphere and converts to a vent-to-engine can with dual inlets and outlets by swapping the top plate for the included VTE plate and gasket. Dual-stage condensing media sit in the inlet and outlet without adding restriction, the 10AN ORB inlet and 4AN ORB drain accept standard fittings, and the bracket rotates 360 degrees.

Specifications

Type Competition oil catch can
Series Competition
Fitment Universal
Vent Type VTA as shipped; converts to VTE (dual inlet / dual outlet) with the included adapter
Can Type Competition, XL
Material CNC machined aluminum can, anodized aluminum brackets
Capacity 1 qt (0.9L, 32 fl oz)
Ports 10AN ORB (7/8in-14) inlet, two added 10AN ORB ports in VTE mode, 4AN ORB (7/16in-20) drain
Size 9.0in tall, 3.45in OD, 2.2 lb with hardware
Baffling Dual-stage condensing media at the inlet and outlet; VTA diffuser returns oil sludge to the can; integrated dipstick
What's in the Box
  • Competition catch can
  • VTE adapter plate and gasket
  • Anodized aluminum mounting brackets
  • Stainless steel M6x1 mounting hardware (fittings sold separately)
Install Bracket rotates 360 degrees; M6x1 hardware for chassis mounting; lower half unscrews to drain
Intended Use High powered engines; meets the common 1 quart minimum catch can capacity rule (SCCA, NASA, Formula Drift)
Quantity 1
Warranty 1 year limited, from date of original purchase
Part Number 20-1771

Documents: Installation Instructions (PDF)

Does it meet racing catch can capacity rules?

  • The XL holds 1 quart and meets the common 1 quart minimum capacity requirement of bodies such as SCCA, NASA and Formula Drift.

Can it vent back to the engine?

  • Yes. It ships VTA and converts to VTE with the included plate and gasket, which adds two 10AN ports for dual inlet and outlet.

Are fittings included?

  • No. Fittings are sold separately; unused 10AN ports can be plugged with 14-0351.

Can I use it with a crankcase vacuum pump?

  • No. The catch cans are not designed for use with aftermarket crankcase vacuum pumps.

Is there a warranty?

  • Yes. Radium Engineering products carry a 1 year limited warranty from the date of original purchase against defects in materials and workmanship.
