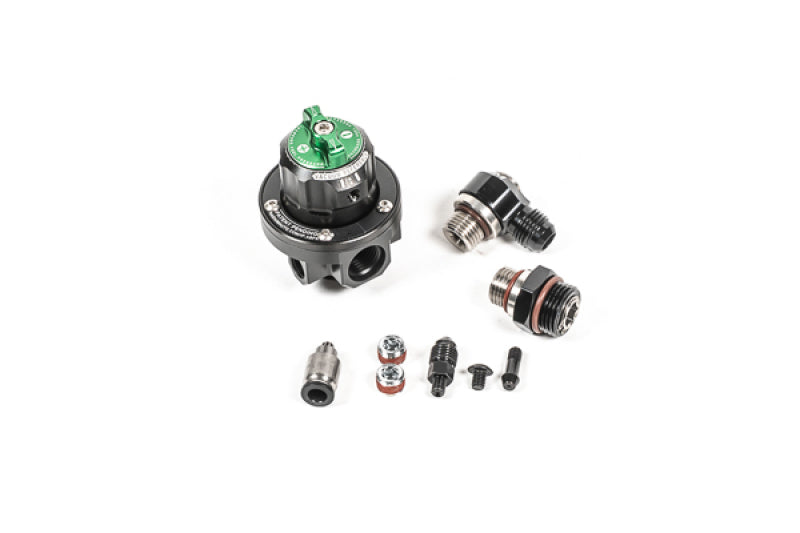

The Radium Engineering Direct Mount Regulator (DMR) is a high-flow vacuum-referenced fuel pressure regulator that bolts directly to Radium fuel rails via its 8AN ORB union, eliminating extra plumbing. Finished in green.
The main inlet is 6AN ORB with an included union for 8AN ORB ports; either lower -6AN ORB port serves as the return, and two 1/8in NPT side ports accept a gauge or sensor. The 1:1 design flows over 1,400 lph with interchangeable orifices for pressure stability.
Specifications
| Brand |
Radium Engineering |
| Series |
Direct Mount Regulator (DMR) |
| Type |
Vacuum-referenced fuel pressure regulator |
| Mount |
Direct 8AN ORB union |
| Inlet |
6AN ORB (8AN ORB union included) |
| Return Ports |
2x -6AN ORB |
| Gauge Ports |
2x 1/8in NPT |
| Min Pressure |
18.5 psi (1.3 bar) |
| Flow |
1,400+ lph |
| Ratio |
1:1 vacuum reference |
| Finish |
Green |
