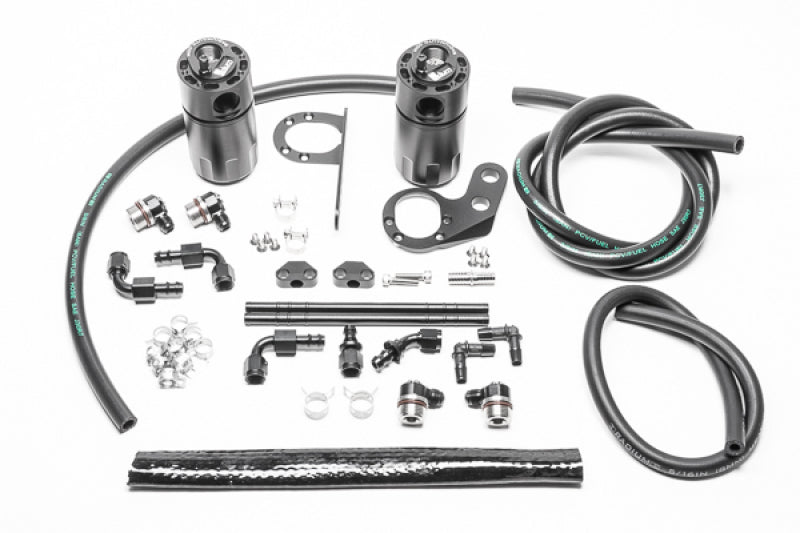

Radium Engineering Fluid Lock Dual Catch Can Kit, two canisters with hoses and fittings

Radium Engineering Fluid Lock Dual Catch Can Kit - Honda Civic Type R / Acura Integra Type S 2017-2026

Radium Engineering SKU: RAD20-0826-FL
Price
5% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandRadium Engineering
SKURAD20-0826-FL
Manufacturer Part Number20-0826-FL

Product Information

A direct-fit dual catch can kit for the FK8 and FL5 Civic Type R and the Integra Type S that combines the PCV and CCV kits. The PCV can runs inline with the PCV valve on the right-hand firewall, and the CCV can runs inline with the crankcase vent port on the right-hand motor mount. Each can holds 7 fl oz with 2-step baffling, an integrated condenser and an O-ring sealed dipstick, with 10AN ORB inlet and outlet ports and a 4AN ORB drain. The cans are pressure sealed, so no extra inline check valve is needed.

Specifications

Type Dual oil catch can kit
Series Fluid Lock
Circuit Dual (PCV and CCV)
Vent Type Vents to engine (closed system)
Can Type Fluid Lock (standard)
Material Anodized aluminum
Capacity 7 fl oz per can
Ports 10AN ORB inlet and outlet, 4AN ORB bottom drain
Baffling 2-step oil separation baffling, integrated condensers, O-ring sealed dipsticks
Hose / Fitting Size 10AN; anodized aluminum AN adapter fittings and hose ends
What's in the Box
  • Two anodized catch cans with integrated condensers and dipsticks
  • Anodized aluminum Civic Type R mounting brackets
  • Anodized aluminum AN adapter fittings and hose ends
  • PCV hose
  • Stainless steel hardware (contents of 20-0424-FL and 20-0825-FL)
Fitment Notes FK8 and FL5 Civic Type R, DE5 Integra Type S; LHD only; an aftermarket motor mount may need minor modification
Install Direct fit, no modifications; PCV can on the RH firewall, CCV can on the RH motor mount
Quantity 1
Warranty 1 year limited, from date of original purchase
Part Number 20-0826-FL

This part fits:

Year Make Model Submodel
2024-2026 Acura Integra Type S
2017-2021, 2023-2026 Honda Civic Type R
2021 Honda Civic Type R Limited Edition

Documents: Installation Instructions (PDF)

What is the difference between the dual kit and the single kits?

  • The dual kit combines the PCV kit 20-0424-FL and the CCV kit 20-0825-FL, so both crankcase ventilation paths are filtered.

Do I need an inline check valve?

  • No. The cans are pressure sealed, so a direct intake manifold connection is fine.

Does it fit the Acura Integra Type S?

  • Yes. It fits the 2024 and later Integra Type S (DE5), left-hand drive only.

How often does the catch can need to be emptied?

  • There is no set interval. Check the level with the integrated dipstick starting at 3 to 4 weeks of driving, then set your interval from what you find. Empty it by unscrewing the lower reservoir, or add the Catch Can Petcock Drain Kit where there is room under the can.

Is there a warranty?

  • Yes. Radium Engineering products carry a 1 year limited warranty from the date of original purchase against defects in materials and workmanship.
