Details
BrandRadium Engineering
SKURAD20-0727-FL
Manufacturer Part Number20-0727-FL
Product Information

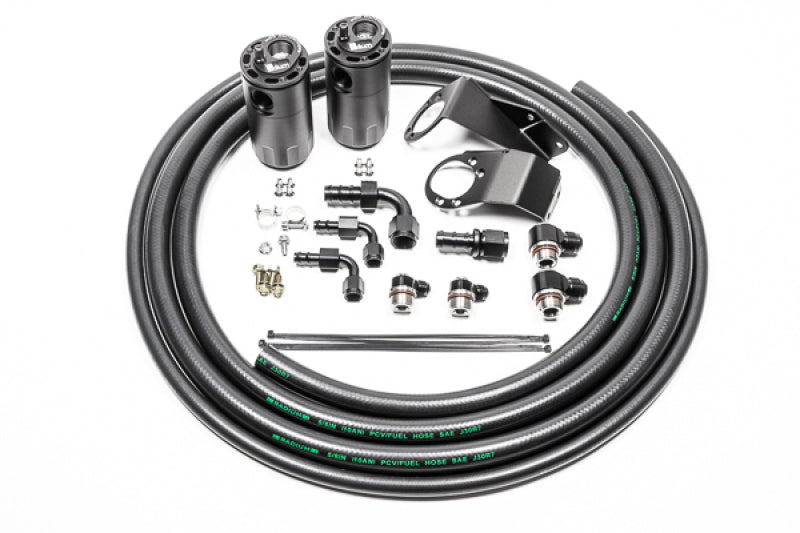

The PCV and crankcase vent catch can kits for the S13 Nissan 240SX together. The PCV can mounts on the right strut tower inline between the PCV valve and intake manifold, and the CCV can mounts on the left side near the firewall inline between the valve cover barb and the intake pipe. Each pressure sealed Fluid Lock can holds 7 fl oz with 2-step baffling, 10AN ORB inlet and outlet ports, a 4AN ORB drain and an O-ring sealed dipstick.
Specifications
| Type |
Dual oil catch can kit |
| Series |
Fluid Lock |
| Circuit |
Dual (PCV and CCV) |
| Vent Type |
Vents to engine (closed system) |
| Can Type |
Fluid Lock (standard) |
| Capacity |
7 fl oz per can |
| Ports |
10AN ORB inlet and outlet, 4AN ORB bottom drain |
| Fitment Notes |
All 240SX models and trims, left- and right-hand drive. Japan-market Silvia, 180SX and 200SX also fit, except CA18DET engines. SR20DET valve cover fittings (20-0811) sold separately. |
| Install |
Direct fit, no drilling |
| Quantity |
1 |
| Warranty |
1 year limited, from date of original purchase |
| Part Number |
20-0727-FL |
This part fits:
| Year |
Make |
Model |
Submodel |
| 1989-1991, 1993-1994 |
Nissan |
240SX |
SE |
| 1989-1990 |
Nissan |
240SX |
XE |
| 1991-1993 |
Nissan |
240SX |
Base |
| 1991 |
Nissan |
240SX |
LE |
Documents: Installation Instructions (PDF)
