Radium Engineering Fluid Lock Dual CCV Catch Can Kit, two canisters with plate and fittings

Radium Engineering Fluid Lock Dual CCV Catch Can Kit - Nissan GT-R 2009-2021

Radium Engineering SKU: RAD20-0555-FL
Price
Regular price $389.45
Regular price $409.95 Sale price $389.45
5% OFF
Only 3 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandRadium Engineering
SKURAD20-0555-FL
Manufacturer Part Number20-0555-FL

Product Information

A dual crankcase vent (CCV) catch can kit for the R35 Nissan GT-R. Two Fluid Lock cans mount on the front of the engine, each running inline between a crankcase vent port and its turbo inlet. Each can holds 7 fl oz with 2-step baffling, 10AN ORB inlet and outlet ports, a 4AN ORB drain and an O-ring sealed dipstick, and the kit installs with no drilling. It pairs with the PCV kit (20-0565-FL), and both together make up the triple kit.

Specifications

Type Dual oil catch can kit
Series Fluid Lock
Circuit Dual CCV (crankcase vent)
Vent Type Vents to engine (closed system)
Can Type Fluid Lock (standard)
Capacity 7 fl oz per can
Ports 10AN ORB inlet and outlet, 4AN ORB bottom drain

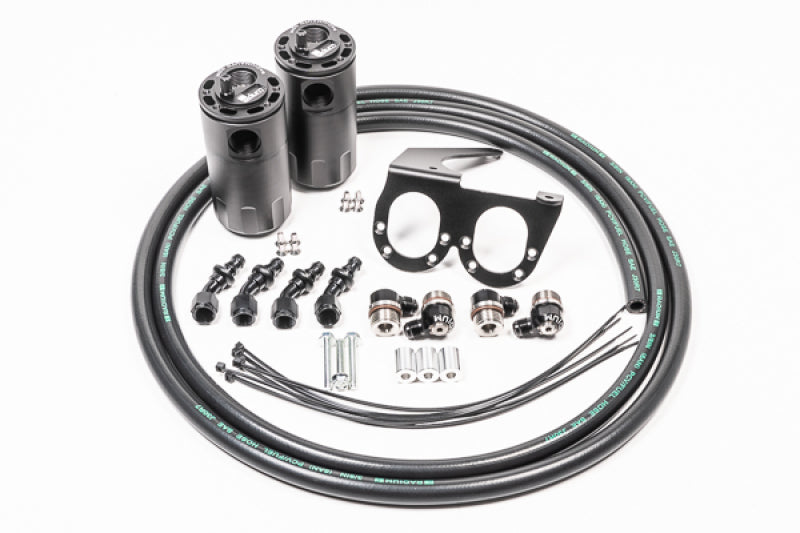

What's in the Box
  • Anodized catch cans with integrated condenser and dipstick
  • R35-specific anodized brackets
  • Anodized AN adapter fittings and hose ends
  • Stainless hardware
  • Radium PCV hose
Fitment Notes R35 Nissan GT-R
Install Direct fit, no drilling; mounts on the front of the engine
Quantity 1
Warranty 1 year limited, from date of original purchase
Part Number 20-0555-FL

This part fits:

Year Make Model Submodel
2009-2010 Nissan GT-R Base
2011, 2013-2014, 2017-2021 Nissan GT-R Premium
2012-2016 Nissan GT-R Black Edition
2015-2021 Nissan GT-R NISMO
2018-2020 Nissan GT-R Track Edition
2019 Nissan GT-R Pure
2020 Nissan GT-R 50th Anniversary Edition

Documents: Installation Instructions (PDF)

Should I add the PCV kit?

  • The PCV kit (20-0565-FL) is designed to be used with this dual CCV kit; together they make up the triple kit (20-0566-FL).

How often does the catch can need to be emptied?

  • There is no set interval. Check the level with the integrated dipstick starting at 3 to 4 weeks of driving, then set your interval from what you find. Empty it by unscrewing the lower reservoir, or add the Catch Can Petcock Drain Kit where there is room under the can.

What does the Fluid Lock design do?

  • An internal mechanism keeps the reservoir from overfilling and traps the collected fluid until the can is emptied, so oil is not pulled back into the intake.

Is there a warranty?

  • Yes. Radium Engineering products carry a 1 year limited warranty from the date of original purchase against defects in materials and workmanship.
