Details
BrandRadium Engineering
SKURAD17-0048
Manufacturer Part Number17-0048
Product Information
Sealed electrical bulkhead studs for passing high current through a wall or panel, such as a fuel cell or surge tank lid, with nothing more than a drilled hole. Each stud is rated to 30 amps and has an insulating sleeve that stops the panel from conducting and prevents galvanic corrosion. The anodized aluminum nut and heat shrink cover the exposed metal to prevent accidental shorts. The studs work with gasoline, diesel, ethanol, methanol and E85.
Specifications
| Type |
Hermetically sealed electrical bulkhead studs |
| Size |
30 amp per stud, ring terminals for 10-12 AWG wire |
| Material |
304 stainless steel studs, anodized aluminum nuts |

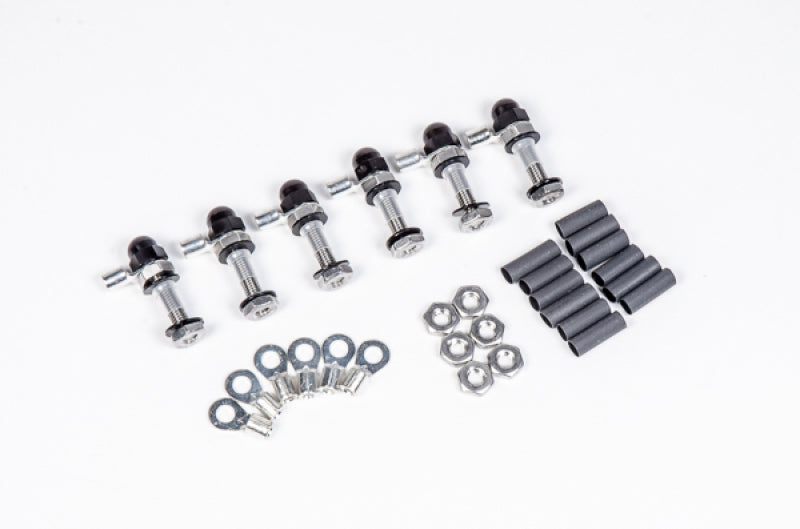

| What's in the Box |
- 6 stainless steel bulkhead studs
- Insulating sleeves
- Ring terminals
- Anodized aluminum nuts
- Heat shrink
- Top locking nuts, 2 per stud
|
| Quantity |
Pack of 6 |
| Warranty |
1 year limited |
