Radium Engineering Fluid Lock PCV Catch Can Kit, single canister with bracket and hose

Radium Engineering Fluid Lock PCV Catch Can Kit - GM LS2 / LS3 / LS7 Engines

Radium Engineering SKU: RAD20-0785-FL
Price
5% OFF
Only 5 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandRadium Engineering
SKURAD20-0785-FL
Manufacturer Part Number20-0785-FL

Product Information

A PCV catch can kit for Gen IV GM LS2, LS3 and LS7 engines, which use a 2.5mm fixed orifice in place of a PCV valve. The kit adds an anodized aluminum PCV valve and a baffled oil cap that draws more blow-by from the crankcase, and the can runs inline between the PCV valve and the intake manifold. The can holds 7 fl oz with 2-step baffling and an integrated condenser and dipstick, with 10AN ORB inlet and outlet ports and a 4AN ORB drain. The bracket mounts to the front right side of the cylinder head, and the kit works with wet and dry sump engines.

Specifications

Type Oil catch can kit
Series Fluid Lock
Circuit PCV
Vent Type Vents to engine (closed system)
Can Type Fluid Lock (standard)
Material Anodized aluminum
Capacity 7 fl oz per can
Ports 10AN ORB inlet and outlet, 4AN ORB bottom drain
Baffling 2-step oil separation baffling, integrated condenser, O-ring sealed dipstick
Hose / Fitting Size SAE quick connect fittings, 3/8in PCV hose

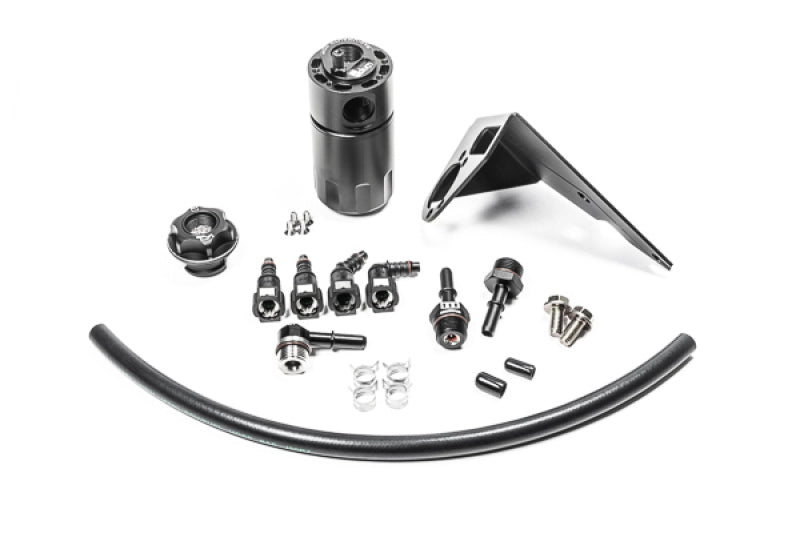

What's in the Box
  • Baffled catch can with integrated condenser and dipstick
  • Anodized aluminum mounting bracket
  • Anodized aluminum baffled oil cap
  • Anodized aluminum PCV valve
  • SAE quick connect fittings
  • Stainless steel hardware
  • 3/8in PCV rubber hose
  • Spring clamps
  • Rubber caps
Fitment Gen IV GM LS2, LS3 and LS7 engines, wet or dry sump
Fitment Notes Confirm clearance at the front RH cylinder head before ordering; extra belt-driven accessories such as an aftermarket supercharger can prevent fitment. In the 2005-2013 Corvette it fits LS2, LS3 and LS7 cars, not the ZR1 (LS9, alternator interference); LS3 Corvettes need the factory Helmholtz airbox resonator removed or an LS7 intake. Gen III LS1 / LS6 engines use 20-0260-FL
Install Direct fit, no drilling; bracket mounts to the front right side of the cylinder head
Quantity 1
Warranty 1 year limited, from date of original purchase
Part Number 20-0785-FL

Documents: Installation Instructions (PDF) | Corvette Installation Instructions (PDF)

Does it fit LS1 or LS6 engines?

  • No. This kit is for Gen IV LS2, LS3 and LS7 engines. Gen III LS1 and LS6 engines use kit 20-0260-FL.

Why does the kit include a PCV valve?

  • Gen IV engines from 2004 on use a 2.5mm fixed orifice instead of a PCV valve; the kit adds an anodized aluminum PCV valve and a baffled oil cap that draws more blow-by from the crankcase.

Will it fit with a supercharger?

  • Extra belt-driven accessories such as an aftermarket supercharger can make the kit incompatible, so confirm clearance at the front right of the cylinder head first.

Does it work on dry sump engines?

  • Yes. It is compatible with both wet and dry sump engines.

Is there a warranty?

  • Yes. Radium Engineering products carry a 1 year limited warranty from the date of original purchase against defects in materials and workmanship.
