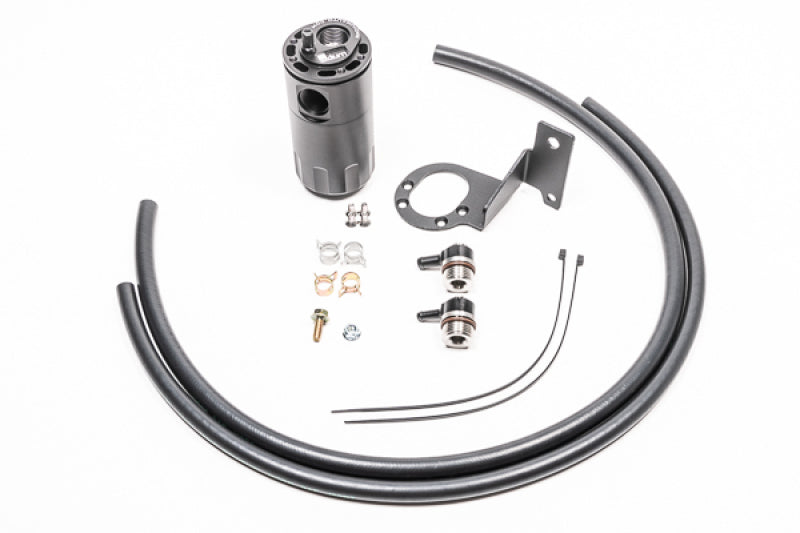

Radium Engineering Fluid Lock PCV Catch Can Kit, single canister with bracket, hose and tube

Radium Engineering Fluid Lock PCV Catch Can Kit - Toyota GR Supra 3.0L 2020-2026

Radium Engineering SKU: RAD20-0749-FL
Price
5% OFF
Only 4 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandRadium Engineering
SKURAD20-0749-FL
Manufacturer Part Number20-0749-FL

Product Information

A direct-fit PCV side catch can kit for the 3.0L turbo GR Supra. The can runs inline between the PCV valve and the intake pipe and mounts to threaded bosses on the front radiator support, catching crankcase vapor, unburned fuel and oil sludge before they reach the intake. It holds 7 fl oz with 2-step baffling, 10AN ORB inlet and outlet ports, a 4AN ORB drain and an O-ring sealed dipstick. The can is pressure sealed, so no extra inline check valve is needed.

Specifications

Type Oil catch can kit
Series Fluid Lock
Circuit PCV
Vent Type Vents to engine (closed system)
Can Type Fluid Lock (standard)
Material Aluminum
Capacity 7 fl oz per can
Ports 10AN ORB inlet and outlet, 4AN ORB bottom drain
Baffling 2-step oil separation baffling, O-ring sealed integrated dipstick
Hose / Fitting Size 10AN adapter fittings and hose ends
What's in the Box
  • Baffled Fluid Lock catch can with dipstick
  • MK5 GR Supra mounting bracket
  • AN adapter fittings and hose ends
  • Stainless steel hardware
  • Radium PCV hose
Fitment Notes 3.0L turbo (B58) only; does not fit the 2.0L; covers the PCV side only (pair with the CCV kit 20-0750-FL for full coverage)
Install Direct fit, no drilling; mounts to threaded bosses on the front radiator support
Quantity 1
Warranty 1 year limited, from date of original purchase
Part Number 20-0749-FL

This part fits:

Year Make Model Submodel
2020-2026 Toyota GR Supra Base
2020 Toyota GR Supra Launch Edition
2020-2026 Toyota GR Supra Premium
2021-2022 Toyota GR Supra A91 Edition
2023 Toyota GR Supra A91-MT Edition
2024 Toyota GR Supra 45th Anniversary Edition
2026 Toyota GR Supra MKV Final Edition

Documents: Installation Instructions (PDF)

Does this fit the 2.0L GR Supra?

  • No. The kit fits the turbocharged 3.0L (B58) GR Supra only.

Do I need an inline check valve?

  • No. The catch can is pressure sealed, so it connects directly without an additional check valve.

How often does the catch can need to be emptied?

  • There is no set interval. Check the level with the integrated dipstick starting at 3 to 4 weeks of driving, then set your interval from what you find. Empty it by unscrewing the lower reservoir, or add the Catch Can Petcock Drain Kit where there is room under the can.

Is there a warranty?

  • Yes. Radium Engineering products carry a 1 year limited warranty from the date of original purchase against defects in materials and workmanship.
