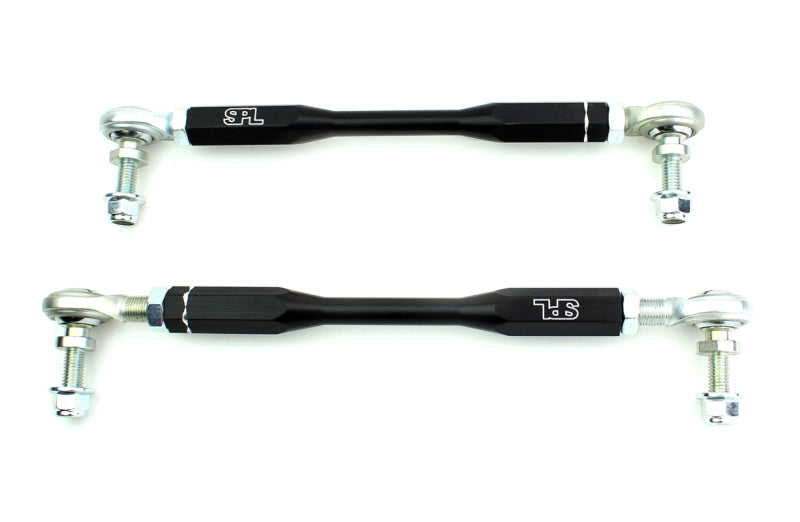

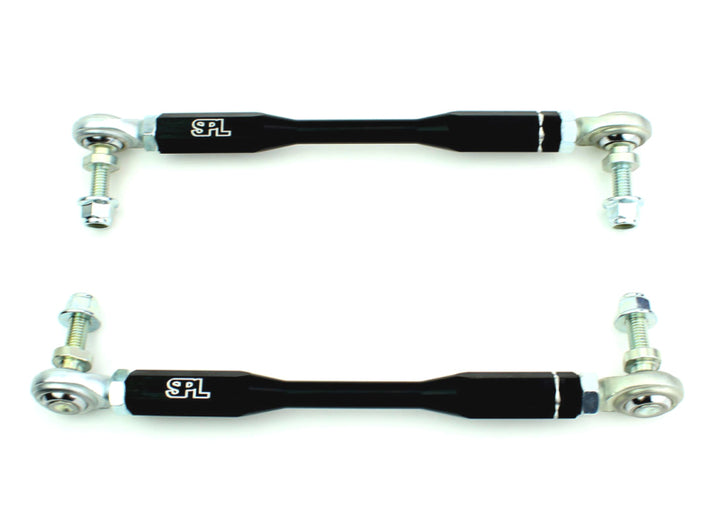

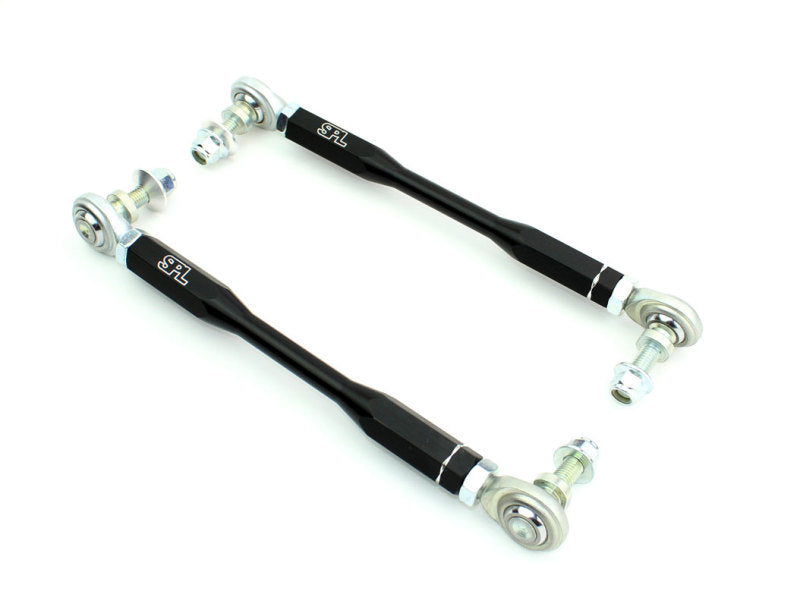

SPL Parts Front Swaybar Endlinks, pair, angled view

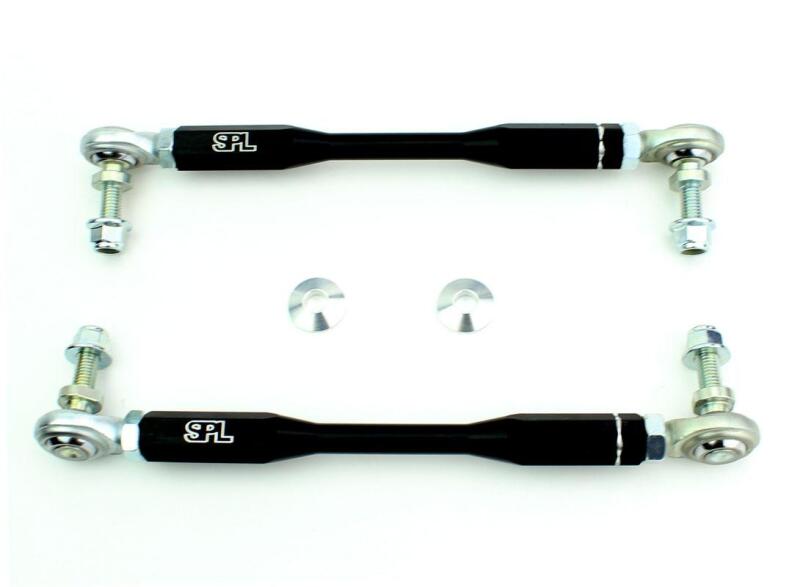

SPL Parts Front Swaybar Endlinks, pair with washers, top view

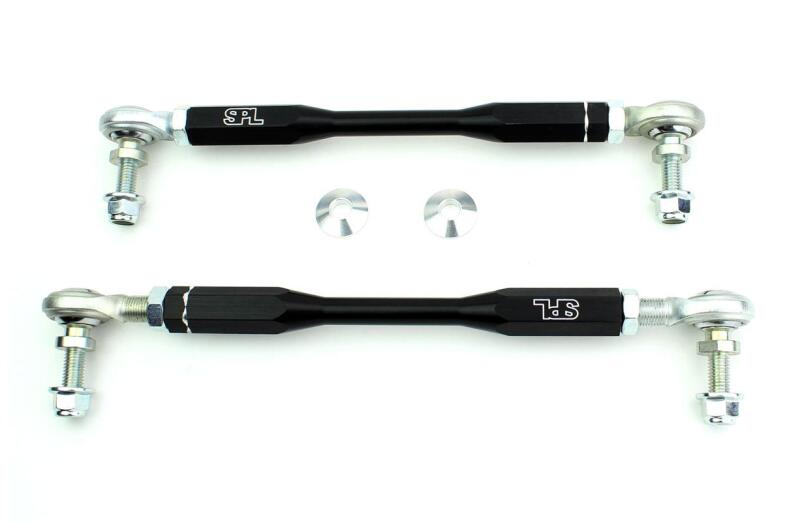

SPL Parts Front Swaybar Endlinks, pair with washers, top view, alternate shot
SPL Parts Front Swaybar Endlinks, pair, angled view
SPL Parts Front Swaybar Endlinks, pair with washers, top view
SPL Parts Front Swaybar Endlinks, pair with washers, top view, alternate shot

SPL Parts Adjustable Front Sway Bar End Links for BMW 1 Series / 3 Series 2006-2013 - Pair

SPL Parts SKU: SPPSPL FE E9X
Price
10% OFF
Only 4 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandSPL Parts
SKUSPPSPL FE E9X
Manufacturer Part NumberSPL FE E9X

Product Information

A pair of length-adjustable front sway bar end links built around large spherical rod ends, made to carry the higher loads of stiffer aftermarket sway bars. High-misalignment studs allow up to 65 degrees of articulation, so the links do not bind when the bar is moved to a different adjustment hole. With aftermarket shocks or coilovers the mounting point may have moved, so measure the distance from the sway bar to the shock mount before ordering.

Specifications

Type Adjustable sway bar end links
Position Front
What's in the Box
  • 2 adjustable sway bar end links
  • Tapered spacers for the strut housing
Adjustability Length adjustable with left- and right-hand threaded rod ends and turnbuckle
Material Black anodized 6061-T6 aluminum turnbuckles; heat-treated chromoly high-misalignment studs
Bushing Material FK 1/2 in spherical rod ends with Teflon liners
Intended Use Street and race
Fitment Notes Non-M E8X 1 Series (E81, E82) and E9X 3 Series (E90, E91, E92) only; does not fit 1 Series M or M3. 2012-2013 328i and 335i: E9X chassis only, not F30. With aftermarket shocks or coilovers the sway bar to shock mount distance must be 10.4 in to 11.9 in
Quantity Pair

This part fits:

Year Make Model Submodel
2008-2013 BMW 128i Base
2008-2013 BMW 135i Base
2013 BMW 135is Base
2006 BMW 325i Base
2006 BMW 325xi Base
2006 BMW 330i Base
2006 BMW 330xi Base
2007-2013 BMW 328i Base
2007-2008 BMW 328xi Base
2009-2013 BMW 328i xDrive Base
2007-2013 BMW 335i Base
2007-2008 BMW 335xi Base
2009-2013 BMW 335i xDrive Base
2009-2011 BMW 335d Base
2011-2013 BMW 335is Base

Documents: Installation Instructions (PDF)

Why are the end links adjustable in length?

  • Setting the length on each side lets the sway bar sit with no preload. Preload can come from springs settling unevenly or from uneven ride heights after corner weighting.

Do I use the tapered spacer with aftermarket struts?

  • Use the supplied tapered spacer when the strut housing has the tapered seat. Some aftermarket struts do not have that feature, and then the spacer is left out.

What should the alignment shop know?

  • Disconnect one end link from the sway bar before an alignment or corner balance, then reinstall it at a length that puts no preload on the bar. Preload can give false alignment readings and make the car pull to one side.

Shipping

  • In stock orders typically ship within 1 to 3 business days.
  • Standard, expedited, and overnight options at checkout.
  • Oversized items ship by freight and take longer.
  • Special order items follow a lead time we confirm with you individually before the order is committed.
  • Backordered items ship as soon as stock lands. Lead times are manufacturer estimates and can change. Contact us for current ETAs.
  • Need to cancel? Email us right away. Cancellations are not guaranteed once an order is in process. In-stock orders cancel free before they ship; a 6% fee applies only to confirmed backorders and special orders.
  • International orders: prices do not include VAT, duties, or import fees. Your country charges these at import and they are the buyer’s responsibility.

Returns

  • 30 days from delivery to request and ship back a return on new, uninstalled items in original packaging with all hardware.
  • Standard returns: 8% restocking fee on the item price before tax and shipping. Shipping is not refunded in either direction. All waived if the item is defective or we made the error.
  • Fitment guaranteed: select your vehicle above, or confirm fitment with us in writing before you order. If the part shows as a fit and it is wrong, the return is on us, even after installation. Otherwise, installed or used parts cannot be returned.
  • Final sale: special orders, coilovers, electronics, engine internals, turbochargers, superchargers and turbo kits, unless defective or we sent the wrong item.
  • Product images may be representative. The SKU and specifications in the listing are what ships.
  • Email us for return authorization before shipping anything back.
