SPL Parts Adjustable Front Sway Bar End Links for BMW M3 / 3 Series / 4 Series 2008-2026 - Pair

SPL Parts SKU: SPPSPL FE E9M
Price
Regular price $249.00 Sale price $224.10
10% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandSPL Parts
SKUSPPSPL FE E9M
Manufacturer Part NumberSPL FE E9M

Product Information

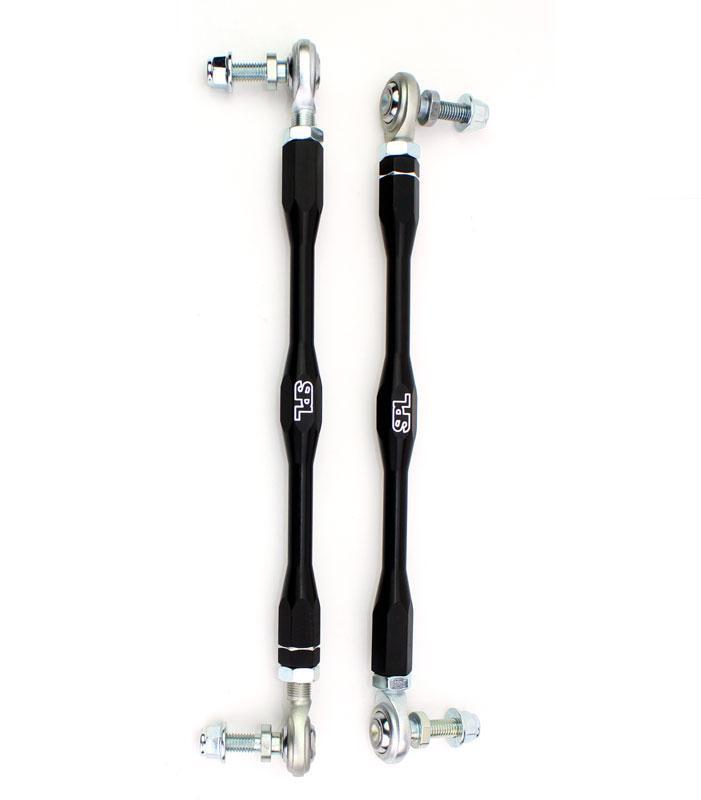

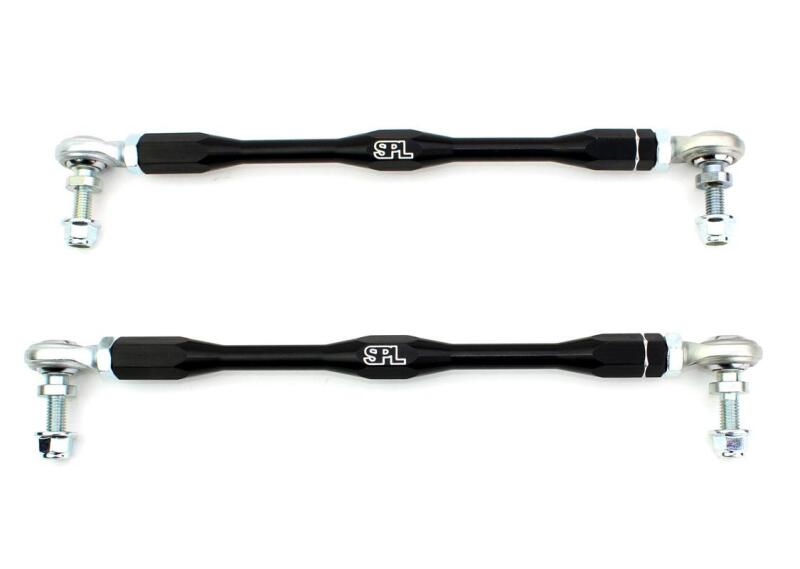

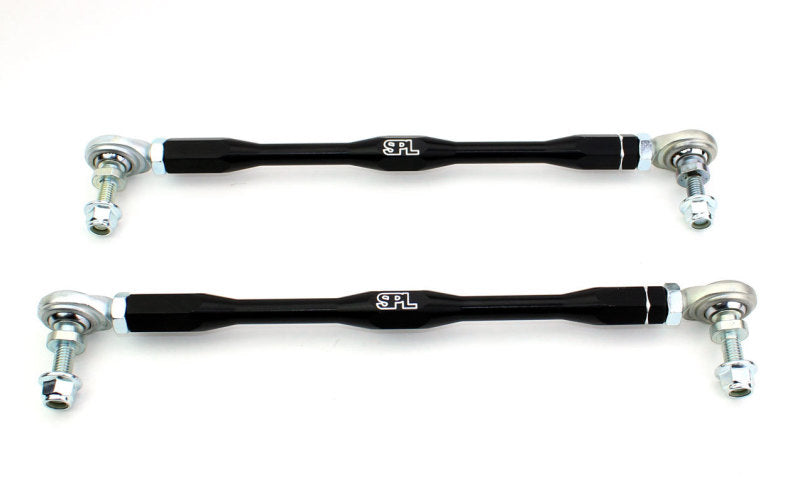

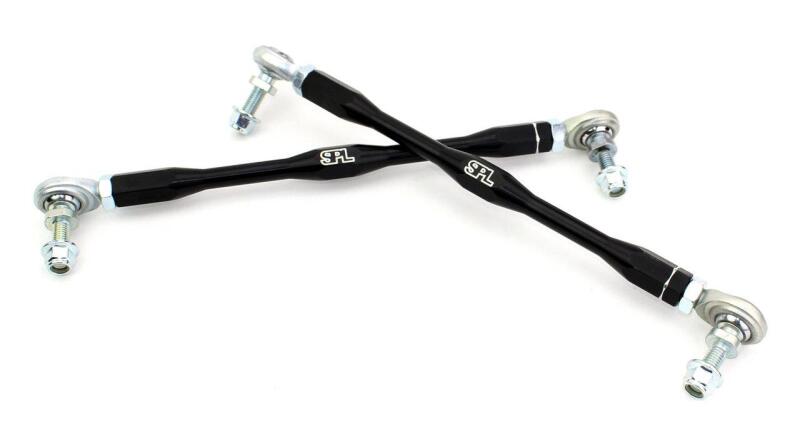

A pair of length-adjustable front sway bar end links built around large spherical rod ends, made to carry the higher loads of stiffer aftermarket sway bars. High-misalignment studs allow up to 65 degrees of articulation, so the links do not bind when the bar is moved to a different adjustment hole. With aftermarket shocks or coilovers the mounting point may have moved, so measure the distance from the sway bar to the shock mount before ordering.

Specifications

Type Adjustable sway bar end links
Position Front
What's in the Box
  • 2 adjustable sway bar end links
  • Tapered spacers for the strut housing
Adjustability Length adjustable with left- and right-hand threaded rod ends and turnbuckle
Material Black anodized 6061-T6 aluminum turnbuckles; heat-treated chromoly high-misalignment studs
Bushing Material FK 1/2 in spherical rod ends with PTFE liners
Intended Use Street and race
Fitment Notes E82 1 Series M and E9X M3; G2X 3 and 4 Series (including G20 330i/M340i 2019+ and G22 430i/M440i 2021+), G42 2 Series, G80/G82 M3/M4 2022+ and G87 M2. With aftermarket shocks or coilovers the sway bar to shock mount distance must be 12.9 in to 14.4 in
Quantity Pair

This part fits:

Year Make Model Submodel
2011 BMW 1 Series M Base
2008-2013, 2022-2026 BMW M3 Base, Competition, Competition xDrive, CS
2022-2026 BMW M4 Base, Competition, Competition xDrive, CSL, CS
2023-2026 BMW M2 Base
2022-2026 BMW 230i Base
2023-2026 BMW 230i xDrive Base
2022-2026 BMW M240i Base
2022-2026 BMW M240i xDrive Base
2019-2026 BMW 330i Base
2019-2026 BMW 330i xDrive Base
2020-2026 BMW M340i Base
2020-2026 BMW M340i xDrive Base
2021-2024 BMW 330e Base
2021-2024 BMW 330e xDrive Base
2021-2026 BMW 430i Base
2021-2026 BMW 430i xDrive Base
2021-2026 BMW M440i Base
2021-2026 BMW M440i xDrive Base
2022-2025 BMW 430i Gran Coupe Base
2023-2025 BMW 430i xDrive Gran Coupe Base
2022-2025 BMW M440i Gran Coupe Base
2022-2025 BMW M440i xDrive Gran Coupe Base
2022-2025 BMW i4 eDrive35, eDrive40, M50, xDrive40

Documents: Installation Instructions (PDF)

Why are the end links adjustable in length?

  • Setting the length on each side lets the sway bar sit with no preload. Preload can come from springs settling unevenly or from uneven ride heights after corner weighting.

Do I use the tapered spacer with aftermarket struts?

  • Use the supplied tapered spacer when the strut housing has the tapered seat. Some aftermarket struts do not have that feature, and then the spacer is left out.

What should the alignment shop know?

  • Disconnect one end link from the sway bar before an alignment or corner balance, then reinstall it at a length that puts no preload on the bar. Preload can give false alignment readings and make the car pull to one side.
