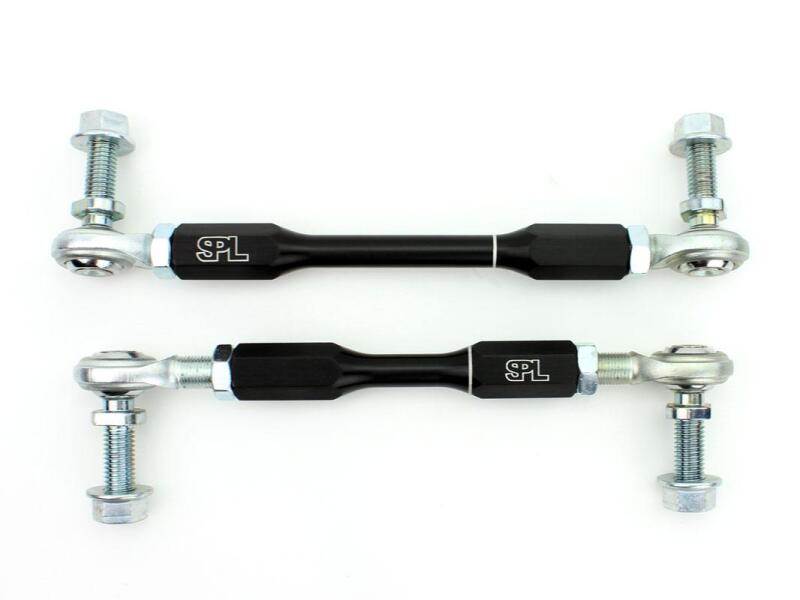

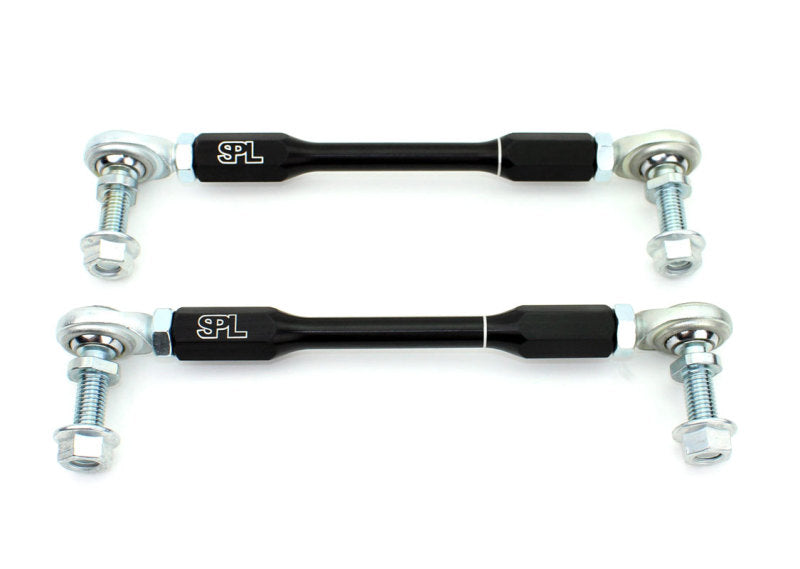

SPL Parts PRO Front Swaybar Endlinks, pair, top view

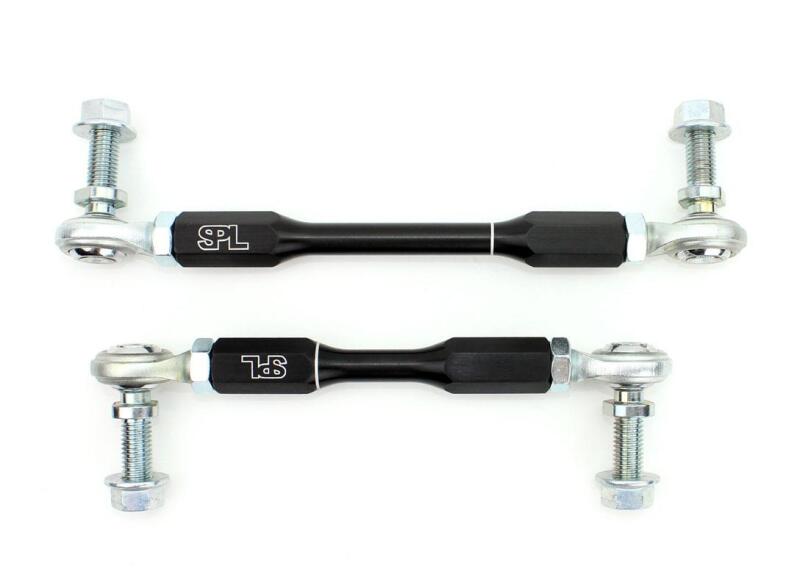

SPL Parts PRO Front Swaybar Endlinks, pair with studs, top view

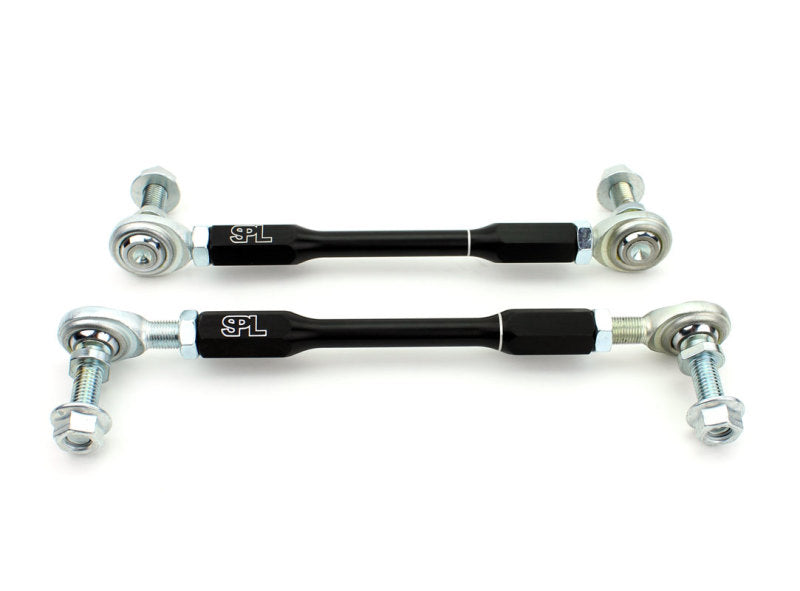

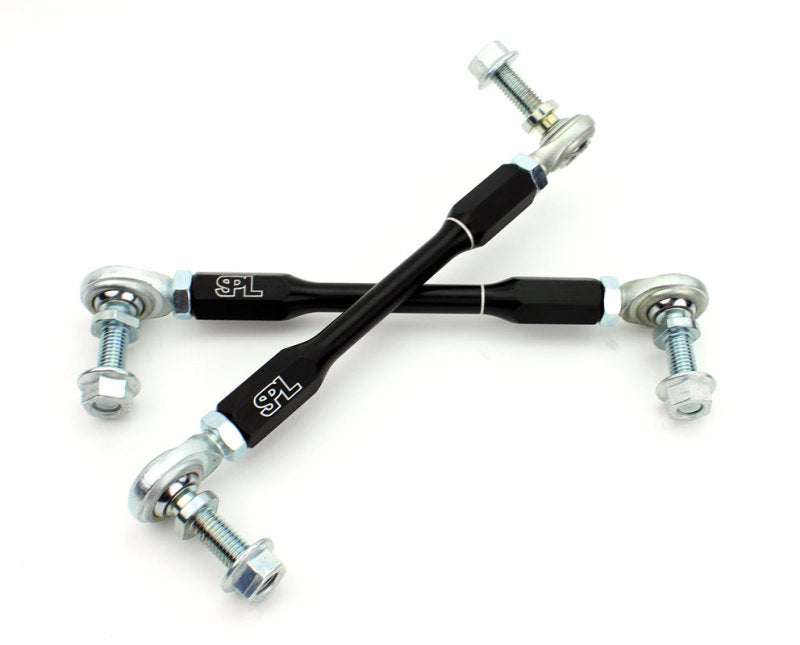

SPL Parts PRO Front Swaybar Endlinks, pair crossed, angled view

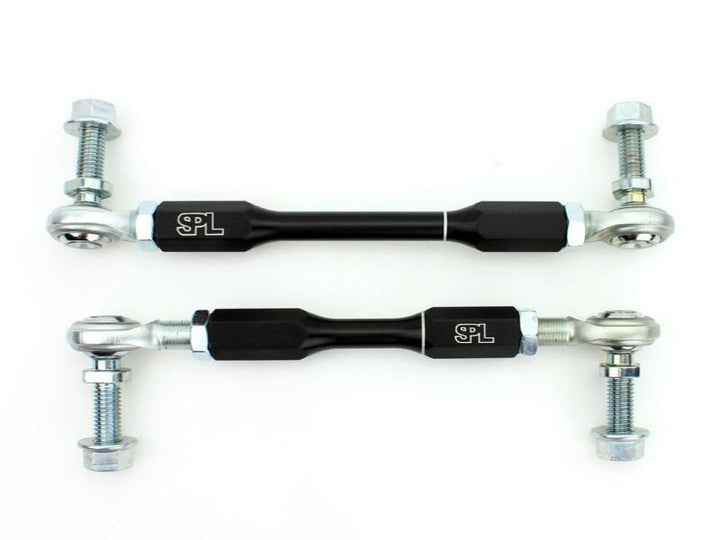

SPL Parts PRO Front Swaybar Endlinks, pair with studs, top view, alternate shot

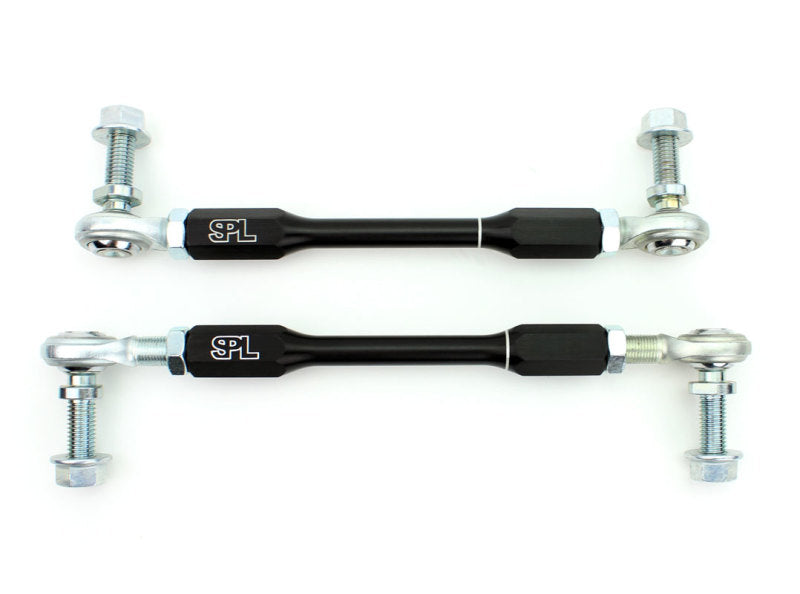

SPL Parts PRO Front Swaybar Endlinks, pair with studs, top view, additional catalog shot
SPL Parts PRO Front Swaybar Endlinks, pair with studs, top view, supplementary shot
SPL Parts PRO Front Swaybar Endlinks, pair with rod ends, top view
SPL Parts PRO Front Swaybar Endlinks, pair with rod ends, angled view
SPL Parts PRO Front Swaybar Endlinks, pair, top view
SPL Parts PRO Front Swaybar Endlinks, pair with studs, top view
SPL Parts PRO Front Swaybar Endlinks, pair crossed, angled view
SPL Parts PRO Front Swaybar Endlinks, pair with studs, top view, alternate shot
SPL Parts PRO Front Swaybar Endlinks, pair with studs, top view, additional catalog shot
SPL Parts PRO Front Swaybar Endlinks, pair with studs, top view, supplementary shot
SPL Parts PRO Front Swaybar Endlinks, pair with rod ends, top view
SPL Parts PRO Front Swaybar Endlinks, pair with rod ends, angled view

SPL Parts Adjustable Front Sway Bar Endlinks for Toyota GR86 / 86 / Subaru BRZ / Scion FR-S 2013-2026 - Pair

SPL Parts SKU: SPPSPL FE FRS
Price
10% OFF
Special Order – Contact Us for Lead Time
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandSPL Parts
SKUSPPSPL FE FRS
Manufacturer Part NumberSPL FE FRS

Product Information

A pair of length-adjustable front sway bar endlinks built around PTFE-lined 1/2 in FK rod ends, sized for the higher loads of stiffer aftermarket sway bars. Heat-treated high-misalignment studs allow up to 65 degrees of articulation, so the links do not bind when the bar is moved to another adjustment hole. Setting the length removes sway bar preload, including the preload from sitting in the car or from springs that have settled, and the turnbuckle can be turned with the links still installed.

Specifications

Type Adjustable sway bar endlinks with high-misalignment studs (up to 65 degrees)
Position Front
Adjustability Length adjustable from 9.15 in (232 mm) to 10.65 in (271 mm) with a left- and right-hand threaded turnbuckle
Material Black anodized 6061-T6 aluminum turnbuckles, heat-treated chromoly high-misalignment studs
Bushing Material PTFE-lined FK 1/2 in rod ends
Intended Use Street and race
Fitment Notes Toyota GR86 (ZN8), Toyota 86 and Scion FR-S (ZN6) and Subaru BRZ (ZC6/ZD8). Made for factory front lower control arms and factory front struts
Quantity Pair

This part fits:

Year Make Model Submodel
2022-2026 Toyota GR86 10th Anniversary Special Edition, Base, Hakone Edition, Premium, Trueno Edition, Yuzu Edition
2017-2021 Toyota 86 Base, GT, Hakone Edition, Special Edition, TRD Special Edition
2013-2016 Scion FR-S Base
2013-2026 Subaru BRZ Base, Limited, Premium, Series Blue, Series Gray, Series Hyperblue, Series Yellow, Sport Tech, T2, TS

Documents: Installation Instructions (PDF)

Will these work with coilovers?

  • Some coilovers or setups need a shorter endlink to clear the lower control arm. SPL also makes a short version (SPL FES FRS) that adjusts from 7.40 in to 8.90 in.

Will they add road noise?

  • They can pass somewhat more tire noise into the cabin and may knock now and then over uneven bumps, such as one wheel at a time over a speed bump. They do not make the ride harsher.
