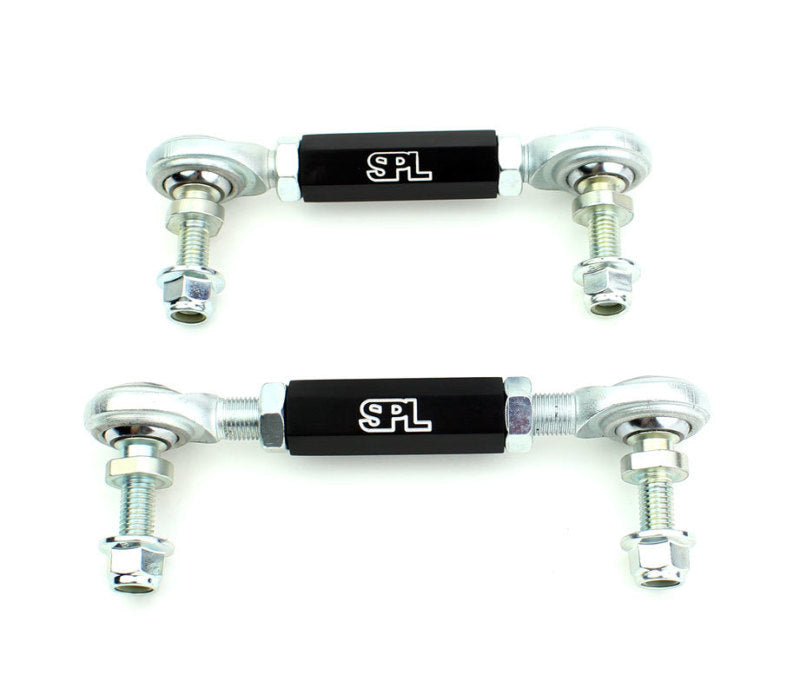

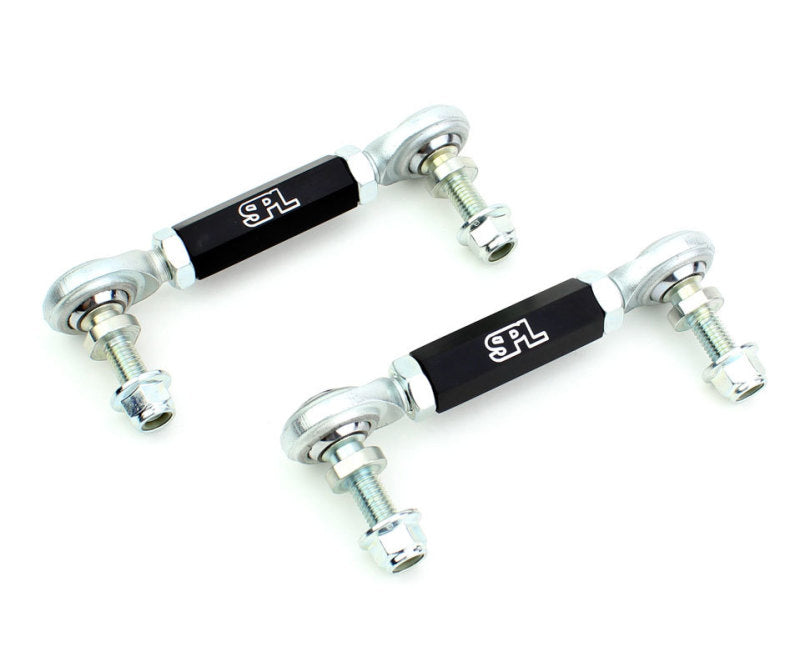

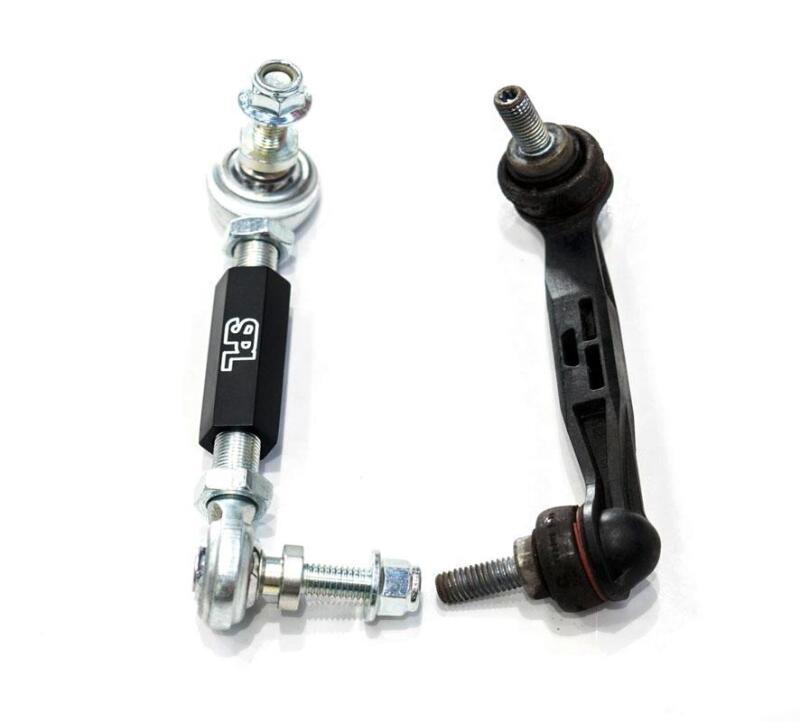

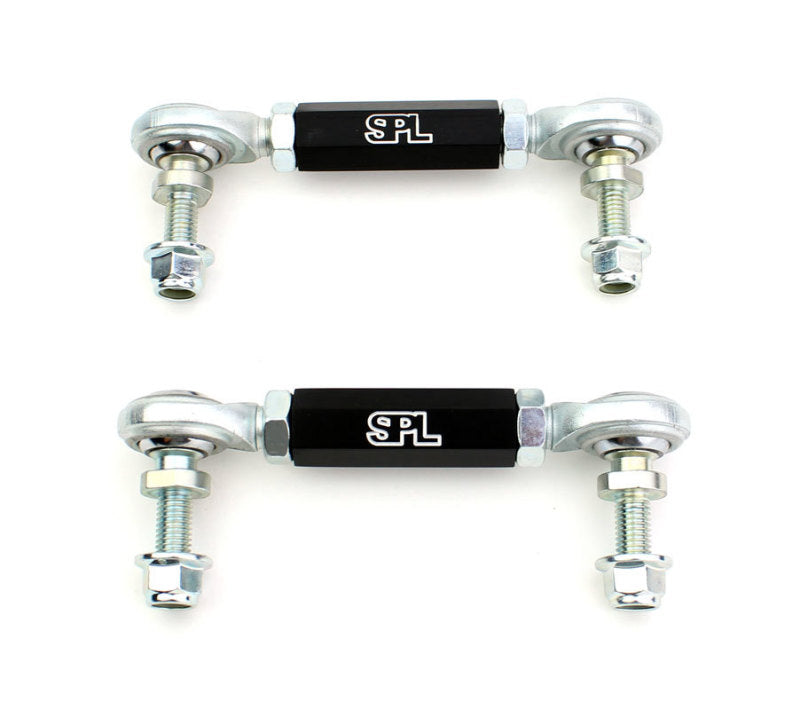

SPL Parts rear sway bar endlinks replace the factory rubber ended links with spherical FK 1/2 in PTFE-lined bearings, raising load capacity for stiff aftermarket sway bars and sharpening bar response. Heat treated chromoly high-misalignment studs give up to 65 degrees of articulation so the link will not bind across different bar mounting holes, and black anodized 6061-T6 aluminum turnbuckles thread onto left and right hand rod ends for precise length adjustment that dials sway bar preload out of the suspension. Built for street or track use and assembled in the USA.
| Type | Adjustable sway bar endlinks (spherical bearing) |
| Position | Rear |
| Bearing | FK 1/2 in PTFE-lined spherical |
| Material | 6061-T6 aluminum turnbuckles, chromoly studs |
| Adjustability | Length adjustable (left/right hand thread) |
| Articulation | Up to 65° |
| Quantity | Pair (2 endlinks) |
| Part Number | SPL RE F3X |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2016 | BMW | 228i | Base |
| 2015-2016 | BMW | 228i xDrive | Base |
| 2017-2021 | BMW | 230i | Base |
| 2017-2021 | BMW | 230i xDrive | Base |
| 2013-2018 | BMW | 320i | Base |
| 2013-2018 | BMW | 320i xDrive | Base |
| 2014-2018 | BMW | 328d | Base |
| 2014-2018 | BMW | 328d xDrive | Base |
| 2012-2016 | BMW | 328i | Base |
| 2014-2016 | BMW | 328i GT xDrive | Base |
| 2013-2016 | BMW | 328i xDrive | Base |
| 2016,2018 | BMW | 330e | Base |
| 2017 | BMW | 330e | iPerformance |
| 2017-2018 | BMW | 330i | Base |
| 2017-2019 | BMW | 330i GT xDrive | Base |
| 2017-2019 | BMW | 330i xDrive | Base |
| 2012-2015 | BMW | 335i | Base |
| 2014-2016 | BMW | 335i GT xDrive | Base |
| 2013-2015 | BMW | 335i xDrive | Base |
| 2016-2018 | BMW | 340i | Base |
| 2017-2019 | BMW | 340i GT xDrive | Base |
| 2016-2018 | BMW | 340i xDrive | Base |
| 2014-2016 | BMW | 428i | Base |
| 2015-2016 | BMW | 428i Gran Coupe | Base |
| 2014-2016 | BMW | 428i xDrive | Base |
| 2015-2016 | BMW | 428i xDrive Gran Coupe | Base |
| 2017-2020 | BMW | 430i | Base |
| 2017-2020 | BMW | 430i Gran Coupe | Base |
| 2017-2020 | BMW | 430i xDrive | Base |
| 2017-2020 | BMW | 430i xDrive Gran Coupe | Base |
| 2014-2016 | BMW | 435i | Base |
| 2015-2016 | BMW | 435i Gran Coupe | Base |
| 2014-2016 | BMW | 435i xDrive | Base |
| 2015-2016 | BMW | 435i xDrive Gran Coupe | Base |
| 2017-2020 | BMW | 440i | Base |
| 2017-2020 | BMW | 440i Gran Coupe | Base |
| 2017-2020 | BMW | 440i xDrive | Base |
| 2017-2020 | BMW | 440i xDrive Gran Coupe | Base |
| 2013-2015 | BMW | ActiveHybrid 3 | Base |
| 2014-2016 | BMW | M235i | Base |
| 2015-2016 | BMW | M235i xDrive | Base |
| 2017-2021 | BMW | M240i | Base |
| 2017-2021 | BMW | M240i xDrive | Base |
