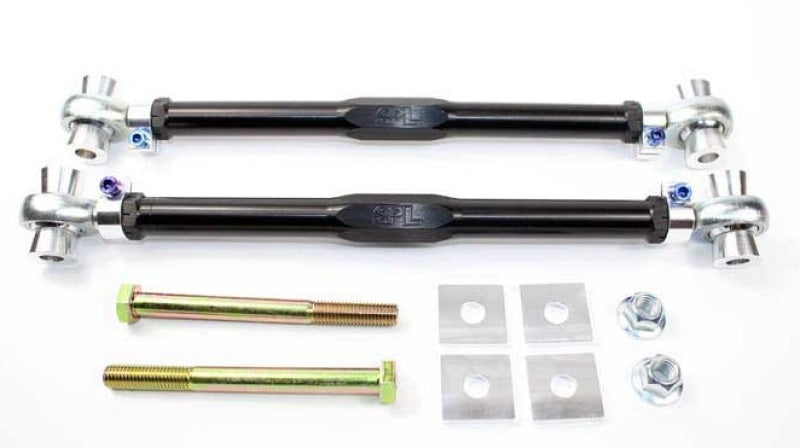

SPL Parts Rear Toe Links with Eccentric Lockout (M Version), pair with bolts and plates, top view

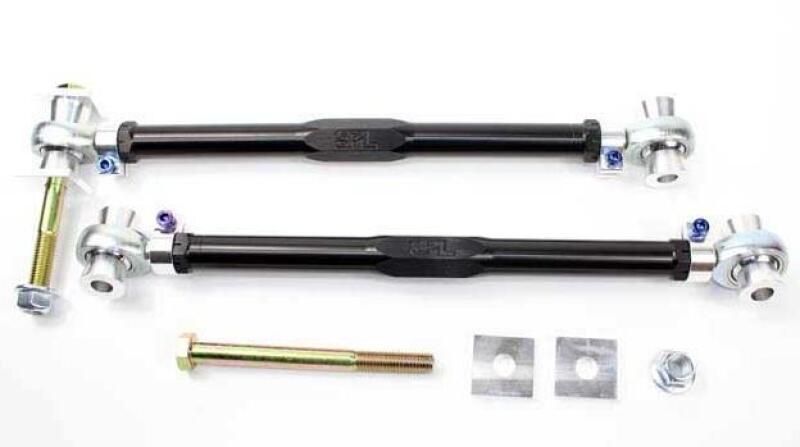

SPL Parts Rear Toe Links with Eccentric Lockout (M Version), pair with bolts, top view

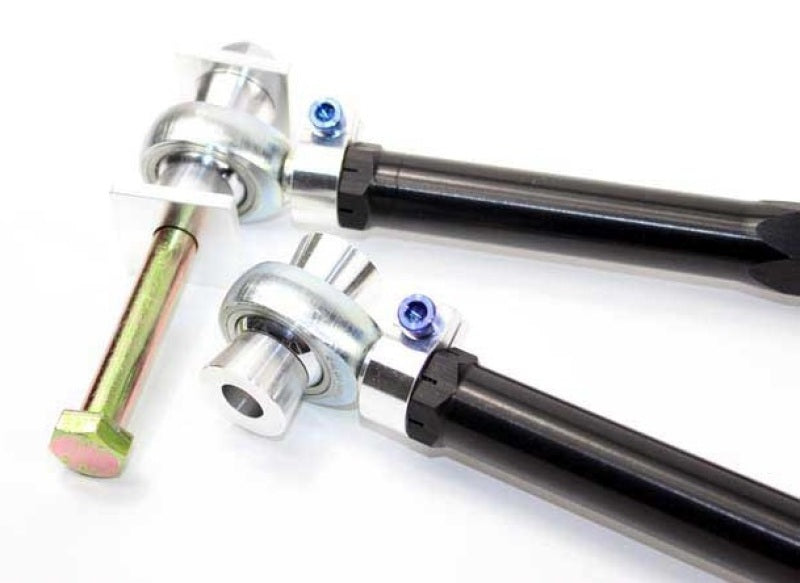

SPL Parts Rear Toe Links with Eccentric Lockout (M Version), rod ends with bolt, close up

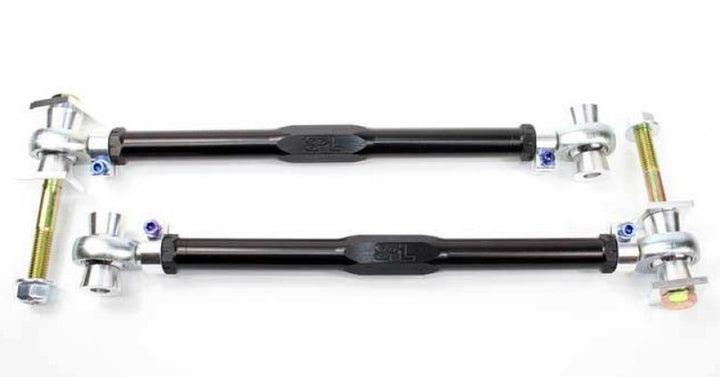

SPL Parts Rear Toe Links with Eccentric Lockout (M Version), pair with bolts and plates
SPL Parts Rear Toe Links with Eccentric Lockout (M Version), pair with bolts and plates, top view
SPL Parts Rear Toe Links with Eccentric Lockout (M Version), pair with bolts, top view
SPL Parts Rear Toe Links with Eccentric Lockout (M Version), rod ends with bolt, close up
SPL Parts Rear Toe Links with Eccentric Lockout (M Version), pair with bolts and plates

SPL Parts Adjustable Rear Toe Links with Eccentric Lockout for BMW 1 Series M / M3 2008-2013 - Pair

SPL Parts SKU: SPPSPL RTAEL E9M
Price
10% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandSPL Parts
SKUSPPSPL RTAEL E9M
Manufacturer Part NumberSPL RTAEL E9M

Product Information

A pair of adjustable rear toe links that replace the factory toe arms, together with a kit that locks out the factory eccentric adjuster. The stock arms are set with an eccentric bolt and washer that offers little range; these links give a wide toe range for a lowered car or a performance alignment, and the PTFE-lined rod ends remove bushing deflection so the rear responds more consistently. Toe is set by turning the link and locked with the rotating clamps.

Specifications

Type Adjustable rear toe links (toe arms) with eccentric lockout kit, M version
Position Rear
Adjustability Rear toe, set on the links with 360 degree rotating clamps
Material Gun drilled 2024 aluminum links, black anodized; 6061-T6 aluminum rotating clamps and lockout washers; titanium socket head cap screws
Bushing Material FK 3-piece rod ends with PTFE (Teflon) liners
What's in the Box
  • 2 adjustable rear toe links with FK rod ends
  • 6061-T6 aluminum eccentric lockout washers
  • Grade 10.9 hex cap bolts with lock nuts
Fitment Notes M versions only: E8X 1 Series M and E9X M3
Quantity Pair

This part fits:

Year Make Model Submodel
2011 BMW 1 Series M Base
2008-2013 BMW M3 Base

Documents: Installation Instructions (PDF)

Why lock out the factory eccentric bolts?

  • The factory rear toe arms are adjusted with an eccentric bolt and washer, which has a small range and less precision. With the lockout washers fitted, toe is set on the adjustable links instead.

Can the rod ends be replaced later?

  • Yes. Right-hand and left-hand thread rod ends are sold separately as replacement parts.

What temperatures can the rod end liners handle?

  • The PTFE liner in the FK rod ends is rated from -65 to 325 degrees F, for street and track use.
