SPL Parts Adjustable Rear Traction Arms for Subaru BRZ / Toyota GR86 / 86 / Scion FR-S 2013-2026 - Pair

SPL Parts SKU: SPPSPL RTR FRS
Price
Regular price $494.10
Regular price $549.00 Sale price $494.10
10% OFF
Only 6 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandSPL Parts
SKUSPPSPL RTR FRS
Manufacturer Part NumberSPL RTR FRS

Product Information

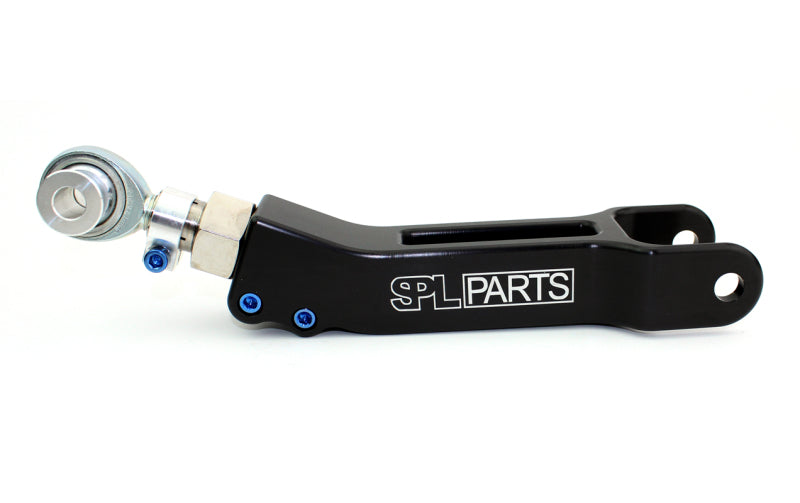

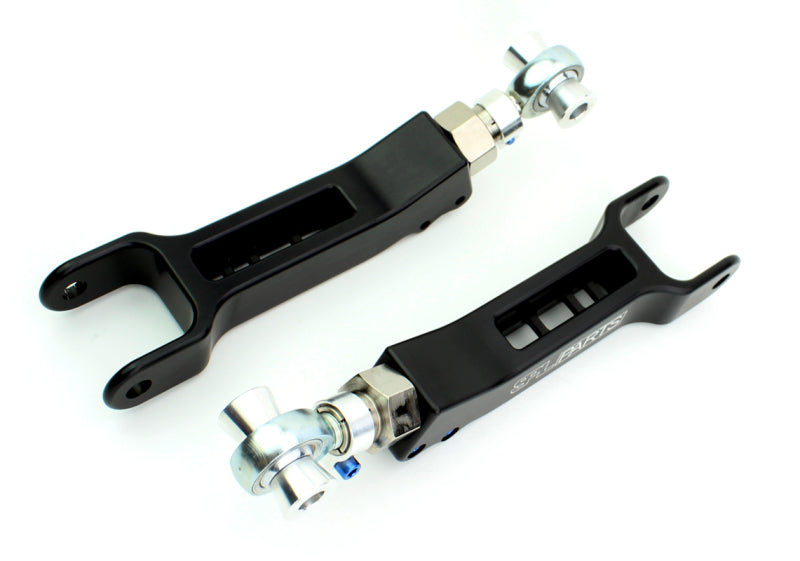

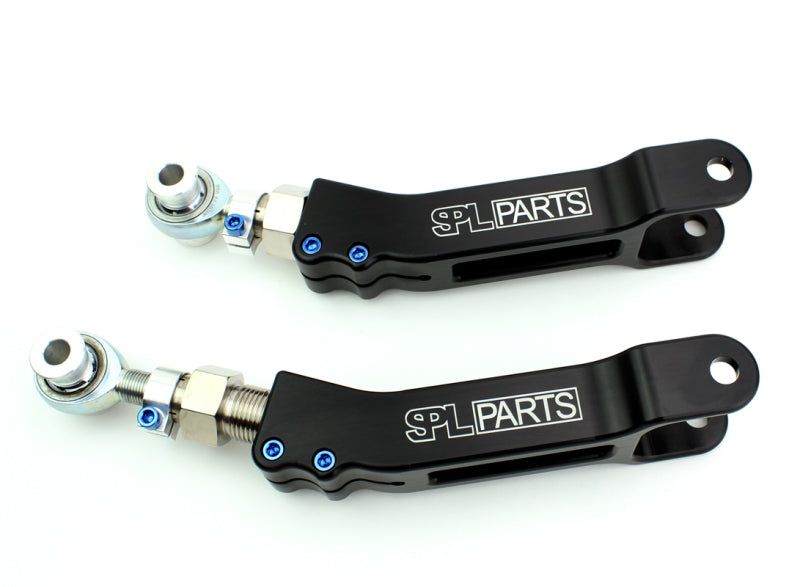

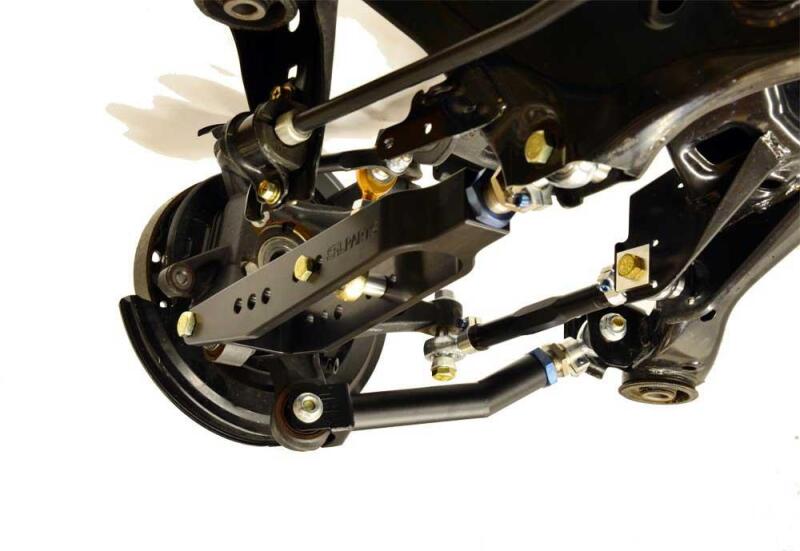

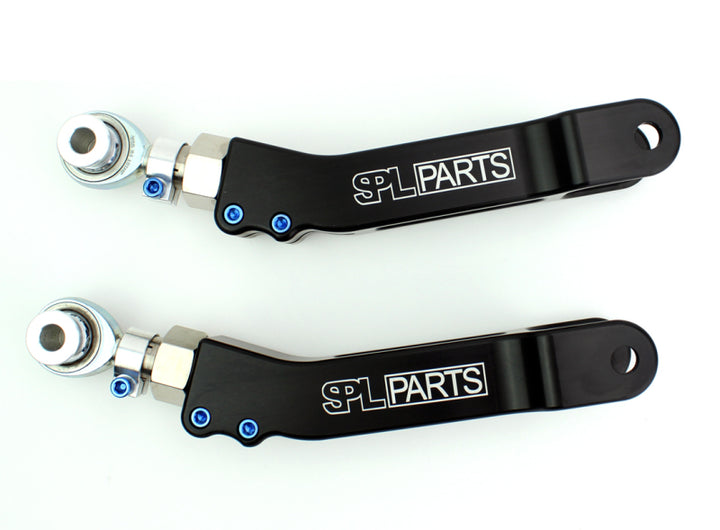

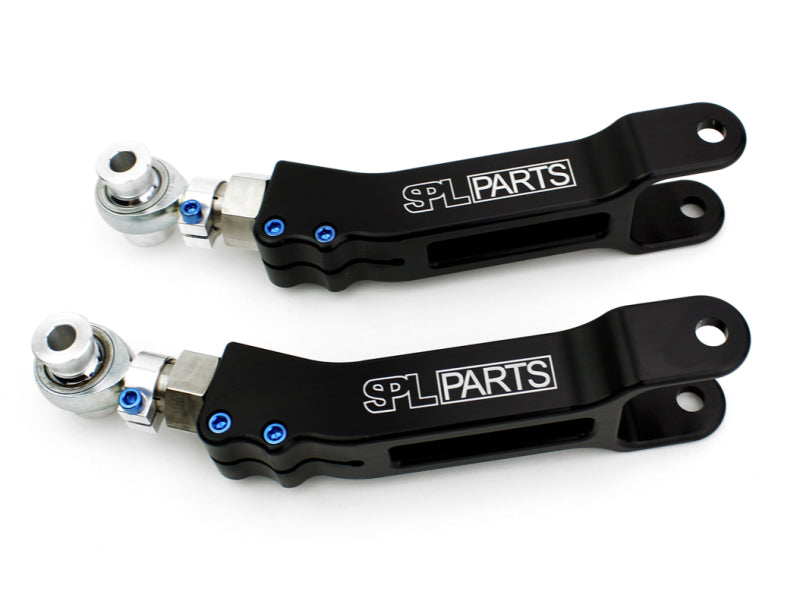

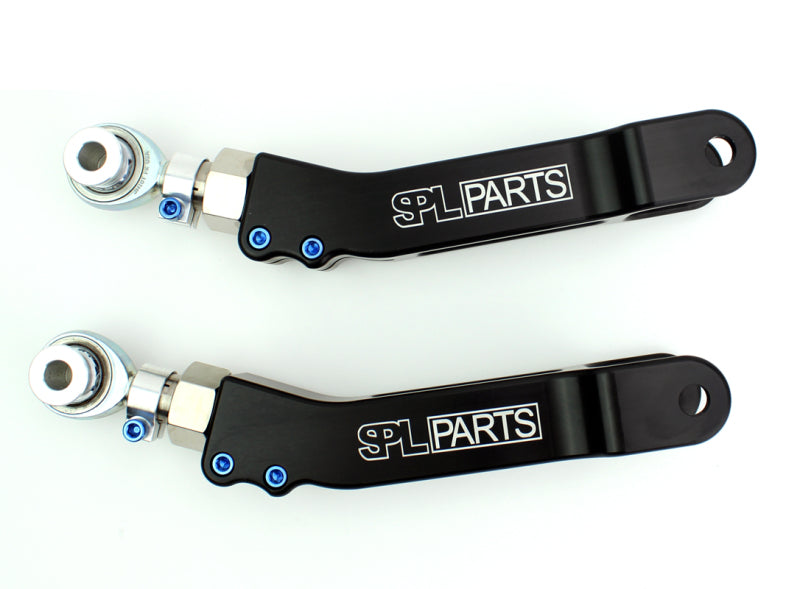

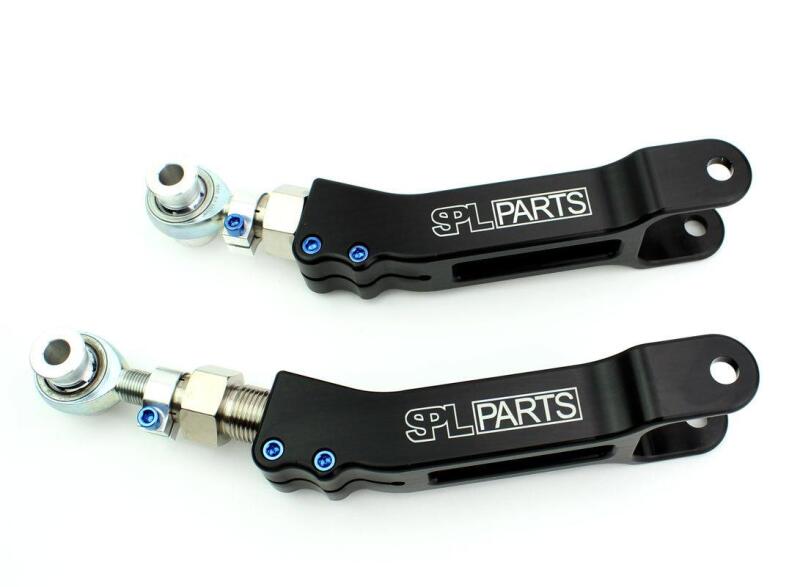

A pair of adjustable rear traction arms that replace one of the rubber bushings in each rear traction link with a PTFE-lined spherical bearing. Less bushing flex under hard acceleration and braking means quicker throttle response, less wheel hop and a steadier rear end when trail braking, and each arm weighs 1.78 lb, 18% less than stock. Changing the arm length adjusts rear bumpsteer and anti-squat, so a wheel alignment is needed after fitting.

Specifications

Type Adjustable rear traction arms (traction rods)
Position Rear
Adjustability Length adjustable with a double adjuster and 360-degree clamp, for rear bumpsteer and anti-squat tuning
Material
  • 6061-T6 aluminum billet arms
  • 6061-T6 aluminum 360-degree clamps
  • 4130 chromoly steel double adjusters, electroless nickel plated
  • Ti-6Al-4V titanium 1/4-20 socket head screws, blue anodized
Bushing Material PTFE-lined FK spherical bearings
Intended Use High performance street and race
Fitment Notes ZN6 (2013-2021 Scion FR-S, Toyota 86 and Subaru BRZ), ZN8 (GR86) and ZD8 (2022 on BRZ) chassis. Replaces OEM traction arms SU003-00360 and 20250-CA000
Quantity Pair

This part fits:

Year Make Model Submodel
2013-2016 Scion FR-S Base
2013-2026 Subaru BRZ Base, Limited, Premium, Series.Blue, Series.Gray, Series.HyperBlue, Series.Yellow, Sport-Tech, T2, tS
2017-2021 Toyota 86 Base, GT, Hakone Edition, Special Edition, TRD Special Edition
2022-2026 Toyota GR86 Base, Premium, 10th Anniversary Special Edition, Hakone Edition, TRUENO Edition, Yuzu Edition

Documents: Installation Instructions (PDF)

What else replaces the other traction arm bushing?

  • The other bushing sits in the rear knuckle. SPL's rear knuckle bushing, sold separately, replaces it, and the two together remove the remaining flex in the traction link.

Will the car be noisier?

  • The arms add a moderate amount of road noise and vibration, because a spherical bearing passes more of it to the body than a rubber bushing.
