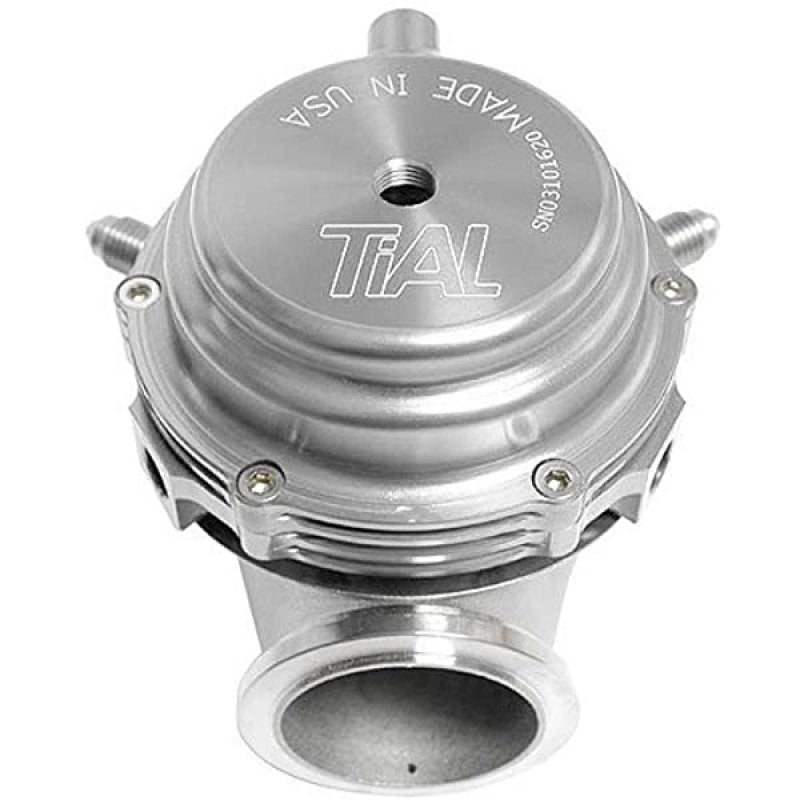

The TiAL Sport MV-S is an ultra compact 38mm V-band external wastegate standing just 3.7 inches tall for tight turbo installations. It pairs a high temp NiCrFe based alloy valve with a 347SS housing, a Nitronic 60 seat and bushing, and a Nomex reinforced silicone diaphragm rated to 900F. V-band flanges, 304L weld flanges, clamps, and a full set of 17-7 PH stainless springs are included, and the top pressure port can be rotated six ways for flexible plumbing. The actuator is color anodized aluminum in silver.
| Type | 38mm V-band external wastegate |
| Height | 3.7 in |
| Valve & Housing | NiCrFe alloy valve, 347SS housing, Nitronic 60 seat & bushing |
| Diaphragm | Nomex-reinforced silicone (rated to 900°F) |
| Springs | Full set included, 17-7 PH stainless |
| Included | V-band and 304L weld flanges, clamps |
| Finish | Silver (color-anodized aluminum) |
| Part Number | 001931 |
