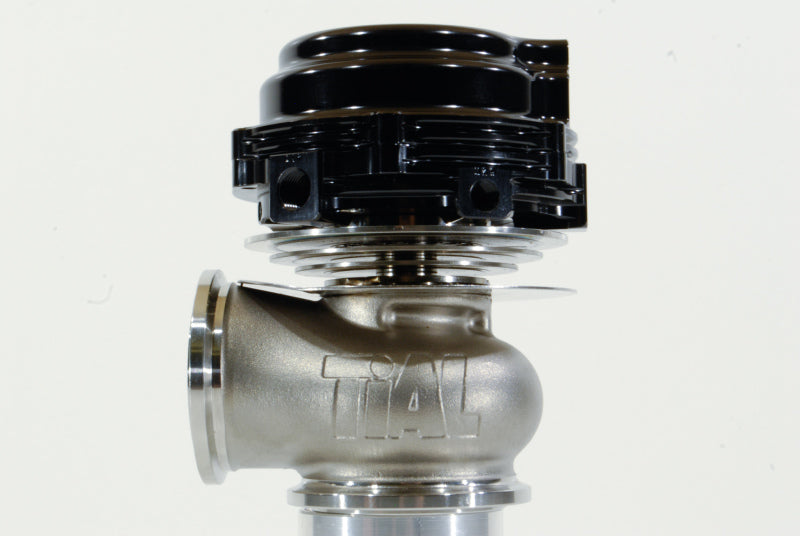

The TiAL Sport MVR is a 44mm V-band external wastegate that controls boost by venting exhaust gas around the turbine, rated 50 lb/min. It is built from stainless steel and aluminum with a black CNC-machined actuator housing, a Nomex-reinforced silicone diaphragm, a multi-port diaphragm chamber and internal M8 coolant passages that keep diaphragm temperature in check. The gate ships with a 14.5 PSI spring, and its full V-band flange set makes for flexible fitment and easy clocking.
| Type | 44mm V-band external wastegate (MVR) |
| Valve Diameter | 44mm |
| Mass Flow | 50 lb/min |
| Springs | 14.5 PSI fitted (complete spring set included) |
| Body | Stainless steel and aluminum |
| Color | Black |
| Diaphragm | Nomex-reinforced silicone, water-cooled housing |
| Included | Wastegate assembly, valve seat, air fittings, coolant fittings, inlet/outlet flanges & V-band clamps, spring set |
| Part Number | 003414 |
Documents: Spring Guide (PDF) | Routing & Plumbing Options (PDF)
