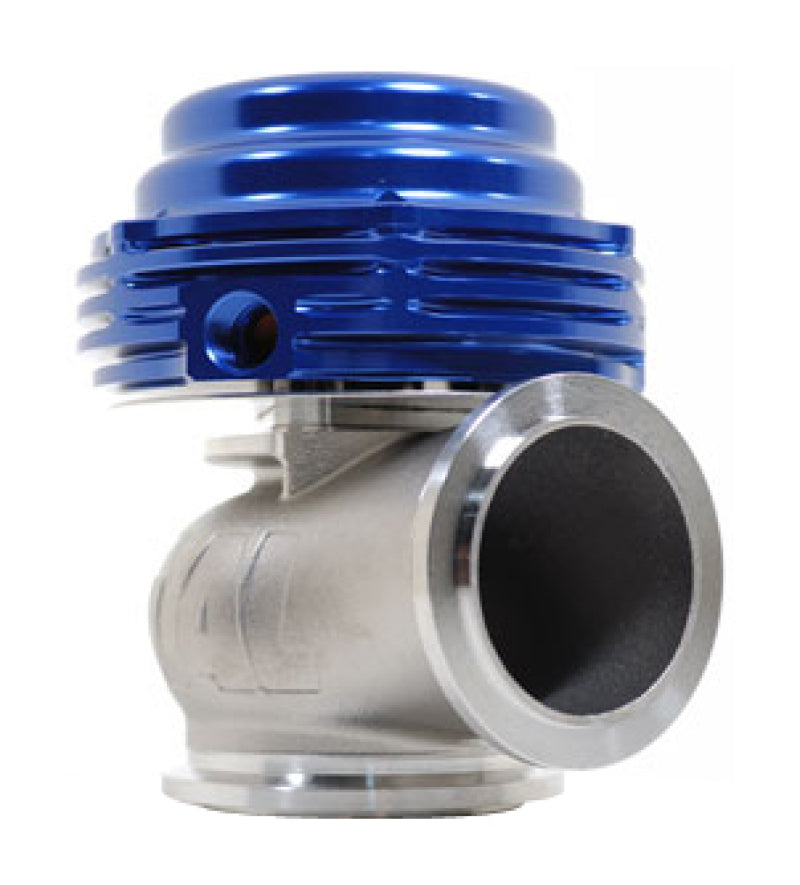

The TiAL Sport MVS is a compact 38mm external wastegate that controls turbocharger boost by venting exhaust gas around the turbine. V-band inlet and outlet connections allow flexible routing, and the unit stands just 3.7 inches tall. The valve and housing use high-temp NiCrFe alloy and 347 stainless steel, with a Nomex-reinforced silicone diaphragm and integrated -4 AN water cooling ports. This kit ships with the complete set of interchangeable springs, covering roughly 4.4 to 24.7 psi (0.3 to 1.7 bar), plus both V-band flanges and clamps.
| Type | 38mm V-band external wastegate (MVS) |
| Connection | V-band inlet and outlet |
| Spring Set | Complete set, approx. 4.4 to 24.7 psi (0.3 to 1.7 bar) |
| Material | NiCrFe alloy valve and housing, 347 stainless steel |
| Finish | Blue anodized actuator |
| Height | 3.7 in |
| Cooling | Integrated -4 AN water cooling ports |
| Included | Wastegate, complete spring set, V-band flanges and clamps |
| Quantity | 1 |
| Part Number | 002952 |
