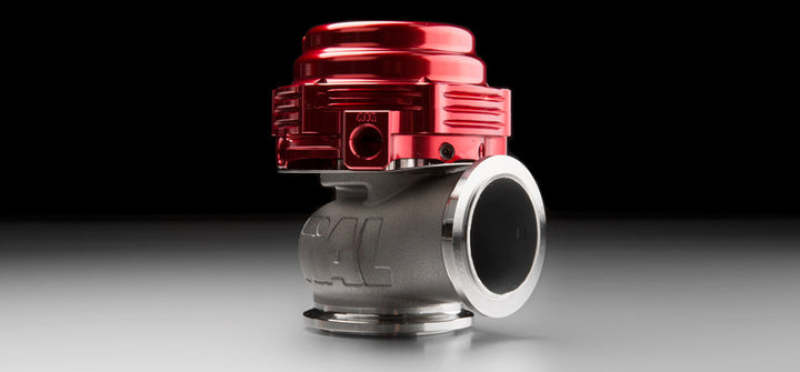

The TiAL Sport MVS is a compact 38mm external wastegate built for precise boost control. Its valve uses a high-temperature NiCrFe alloy in a 347 stainless steel housing with a Nitronic 60 seat and a Nomex-reinforced silicone diaphragm, flowing up to 34 lb/min across a 0.3 to 1.7 bar range. The kit includes the complete actuator spring set for pressure tuning plus V-band inlet and outlet flanges with clamps. The red anodized aluminum body stands just 3.7 inches tall, suiting tight twin-scroll and dual-wastegate setups.
| Type | 38mm external wastegate (TiAL MVS) |
| Valve Diameter | 38mm |
| Material | NiCrFe alloy valve, 347 stainless steel housing, Nitronic 60 valve seat, 304L stainless flanges |
| Finish | Red anodized aluminum actuator body |
| Pressure Range | 0.3-1.7 bar |
| Flow | 34 lb/min |
| Included | Complete actuator spring set, V-band inlet and outlet flanges with clamps, air and coolant fittings |
| Quantity | 1 |
| Part Number | 002955 |
