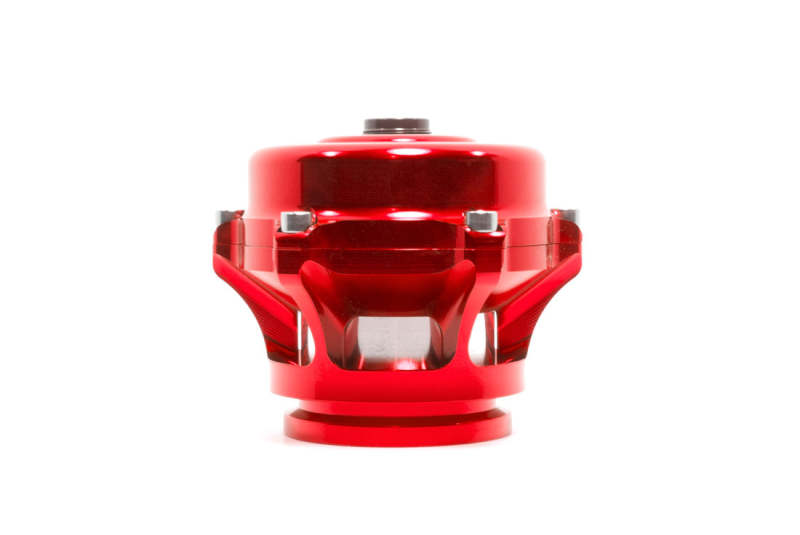

TiAL Sport Q 51mm Blow-Off Valve, red, assembled body, front view

TiAL Sport Q Blow-Off Valve 51 mm - 11 psi Spring, Red

TiALSport SKU: TLS002575
Price
Regular price $287.32 Sale price $273.37
5% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandTiALSport
SKUTLS002575
Manufacturer Part Number002575

Product Information

This is an open-body blow-off valve with a 51 mm valve that vents boost pressure when the throttle closes, which keeps the compressor from surging. It flows up to 220 lb/min at 30 psi intake pressure, about seven times the 31 lb/min of the recirculating QR, and its open body gives the quietest discharge of the range. It bolts straight onto an existing TiAL BV50 flange, and a weld flange, clamp and O-ring are included for a new install. The 11 psi spring sets how much engine vacuum opens the valve, so choose it by idle vacuum, not by boost. Designed and made in the USA.

Specifications

Type Open body blow-off valve, 51 mm valve, red actuator
Operation Open body discharge; the QR is the recirculating version
Spring Pressure 11 psi (Q range 2 to 12 psi)
Flange / Mount Bolts to a standard TiAL BV50 flange without welding; weld flange included
What's in the Box
  • Q BOV assembly
  • Air fitting set
  • Weld flange
  • Clamp assembly
  • Weld flange O-ring
Warranty 24 months

Documents: Product Drawing (PDF) | BOV FAQ (PDF) | Bench Testing Instructions (PDF) | Routing Options (PDF) | Flow Chart

How do I connect the vacuum line?

  • The air fitting takes 1/4 in (6 mm) hose. Run it to full engine vacuum, preferably directly at the intake manifold, with no check valve or tee in the line. The routing options sheet shows the layouts.

Is it normal for the valve to stay open at idle on a supercharged engine?

  • Yes. Supercharged engines often make positive manifold pressure at idle, so they use a very weak spring: the valve stays open at idle and closes quickly once pressure turns positive.

How can I check the valve before installing it?

  • Attach a hand vacuum pump to the air fitting and apply vacuum slowly. The valve should start to move at the low end of the spring rating and open fully as vacuum rises.

What is it made of?

  • All billet aluminum, CNC machined, with an anodized valve stem and guide that cut wear, a Nomex-reinforced silicone diaphragm and stainless steel hardware. The vacuum port in the upper diaphragm chamber is M10.
