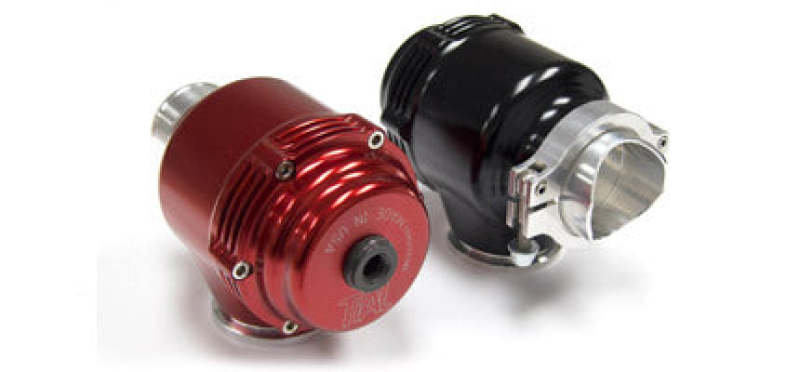

TiAL Sport QRJ Recirculating Blow-Off Valve 3 PSI Spring - Red, No Flanges

The TiAL Sport QRJ is a compact recirculating blow off valve with a 38.5mm valve, machined from 6061 aluminum for high flow in a small installation envelope. The valve seals on a clamped Viton O-ring to prevent sticking, while the Teflon lubricated, hard anodized stem and guide resist wear. Configurable inlet and outlet ports let it be plumbed as a recirculating or vent to atmosphere valve. This valve ships with the 3 PSI spring and does not include weld flanges.

Specifications
