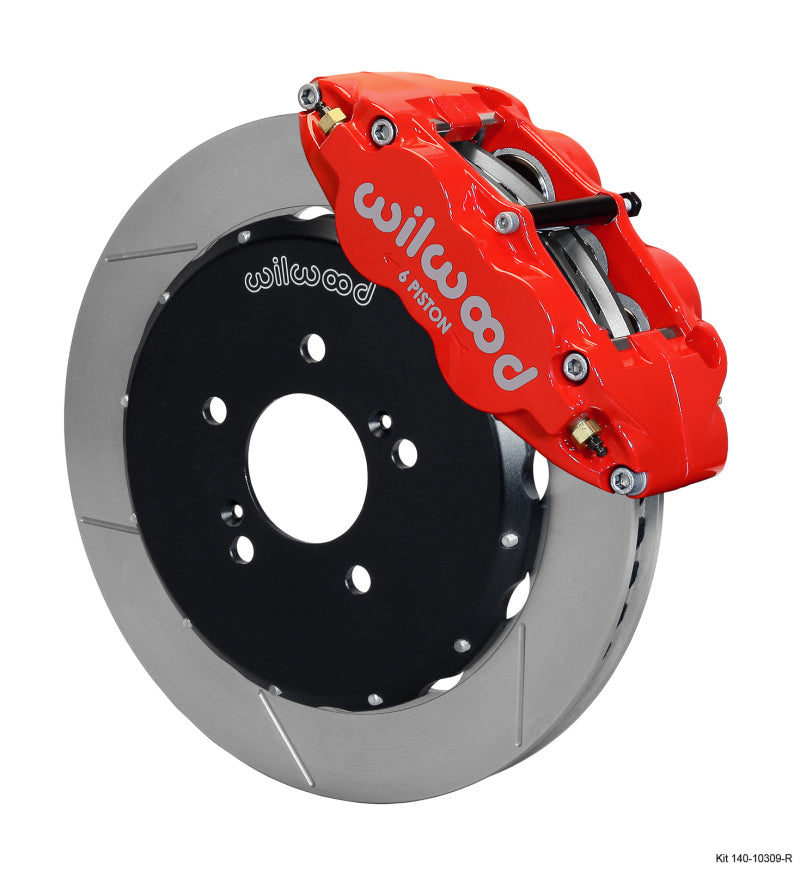

The Wilwood Forged Narrow Superlite 6R front kit pairs a six piston forged aluminium caliper with a 12.88 in by 1.10 in rotor, lifting clamping area and thermal capacity well beyond the factory setup while staying compatible with OE master cylinder output and ABS function. Rotors are Wilwood GT 48 curved vane vented discs in Spec-37 iron with a black E-coat finish, GT slotted and dynamically balanced, and the calipers wear a red powder coat. Rotors mount to aluminium big brake hats with a 0.540 in short offset and a black E-coat finish. BP-10 pads give 8.2 square inches of pad area per caliper, and the kit ships with a stainless braided flexline kit, caliper mounting brackets and all hardware. Wilwood specifies a 17 in minimum wheel diameter.
| Type | Front big brake kit (Wilwood Forged Narrow Superlite 6R) |
| Position | Front |
| Caliper | Forged Narrow Superlite 6R, 6 piston, forged aluminium body, stainless steel pistons |
| Caliper Finish | Red powder coat |
| Rotor | GT 48 curved vane, vented, GT slotted, Spec-37 iron, black E-coat, dynamically balanced |
| Rotor Size | 12.88 in diameter x 1.10 in thick |
| Hat | Aluminium big brake hat, short offset 0.540 in, black E-coat |
| Pads | BP-10 compound, 8.2 sq in pad area per caliper |
| Included | 2 calipers, 2 rotors, 2 hats, caliper mounting brackets, pads, stainless braided flexline kit 220-10841, all hardware |
| Minimum Wheel Diameter | 17 in |
| Quantity | 1 kit (front axle) |
| Part Number | 140-10309-R |
Documents: Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2000-2009 | Honda | S2000 | Base |
| 2008-2009 | Honda | S2000 | CR |
