Wilwood TC6R 16in Rear Big Brake Kit 4.84in Register - Chevrolet Silverado 2500 HD / GMC Sierra 2500 HD 1999-2013 - Red

Wilwood TC6R 16in Rear Big Brake Kit 4.84in Register - Chevrolet Silverado 2500 HD / GMC Sierra 2500 HD 1999-2013 - Red

Wilwood SKU: WIL140-9406-DR
Price
11% OFF
On Backorder – Order Now or Contact Us for Availability
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandWilwood
SKUWIL140-9406-DR
GTIN / UPC889545031829

Product Information

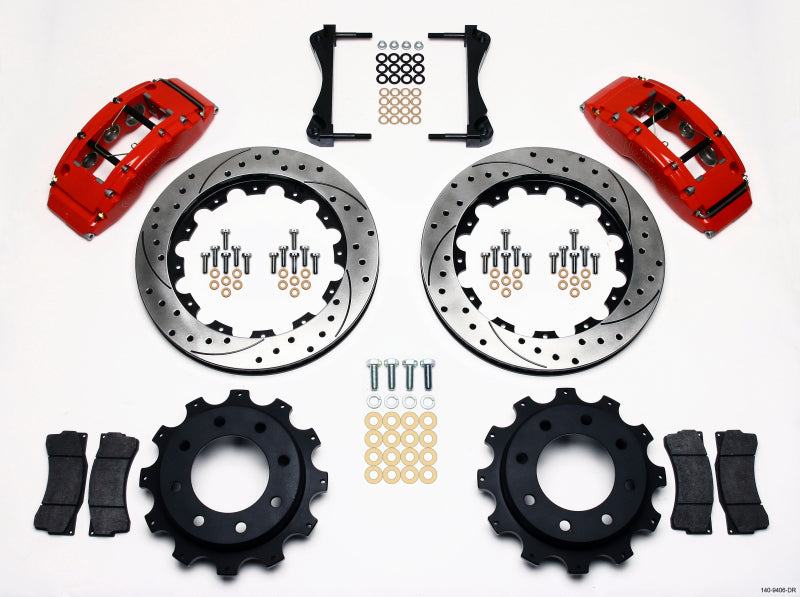

The Wilwood TC6R rear kit replaces the factory rear disc brakes on heavy trucks and SUVs running larger than stock wheels, pairing a forged six-piston TC6 radial-mount caliper with a 16.00 in by 1.38 in SRP drilled and slotted iron rotor. Caliper bores measure 1.75 in, 1.38 in, and 1.38 in for 5.40 sq in of piston area, and BP-10 compound pads give 13 sq in of pad area. Piston area, rotor size, and pad compound are matched to the OE master cylinder output, ABS function, and vehicle brake bias, so the kit adds stopping control for big wheel and tire packages without upsetting the factory hydraulic balance. The OE parking brake assembly is retained through the included drum-in-hat. This kit fits axles with a 4.84 in center register only, and wheel interior clearance should be checked against the diagram in the installation instructions before purchase.

Specifications

Type TC6R big brake truck rear brake kit
Position Rear
Caliper TC6 forged six-piston radial mount, stainless pistons
Caliper Bores 1.75 in / 1.38 in / 1.38 in (5.40 sq in piston area)
Rotor 16.00 in x 1.38 in SRP drilled and slotted iron, 72 vane, black electro coat
Pads BP-10 compound, 13 sq in
Axle Center Register 4.84 in (fits this register only)
Parking Brake OE parking brake retained; drum-in-hat included, cables and adapters not supplied
Parking Brake Hat 170-14029
Finish Red powder coat calipers
Piston Bore 1.75 / 1.38 / 1.38 in
Pad Compound BP-10
Pad Shape 6318
Mount Type Radial
Rotor Width 1.38 in
Rotor Finish Black Electro Coat
Hat Iron, Black E-Coat
Minimum Wheel Diameter 20 in
Rear End OEM
Fitment Notes Chevrolet Avalanche 2500 2002-2006, Chevrolet Silverado 2500 HD Pickup 2008-2010, Chevrolet Suburban 2500 2007-2011 and 2 more: 8 Lug - All; Chevrolet Silverado 2500 HD Pickup 2001-2006, Chevrolet Silverado 2500 Pickup 1999-2004, Chevrolet Suburban 2500 2001-2006 and 3 more: 8 Lug - All w/ 4.84 Center Register Rear; Chevrolet Silverado 2500 HD Pickup 2007, GMC Sierra 2500 HD Pickup 2007: 8 Lug - Classic Style; Chevrolet Silverado 2500 HD Pickup 2007, GMC Sierra 2500 HD Pickup 2007: 8 Lug - New Style
Quantity 1 kit (rear axle)
Part Number 140-9406-DR

This part fits:

Year Make Model Submodel
2002-2004 Chevrolet Avalanche 2500 Base
2005-2006 Chevrolet Avalanche 2500 LS
2005-2006 Chevrolet Avalanche 2500 LT
1999-2004 Chevrolet Silverado 2500 Base
1999-2004 Chevrolet Silverado 2500 LS
1999-2004 Chevrolet Silverado 2500 LT
2004 Chevrolet Silverado 2500 WT
2001-2005 Chevrolet Silverado 2500 HD Base
2001-2006 Chevrolet Silverado 2500 HD LS
2001-2010 Chevrolet Silverado 2500 HD LT
2007-2010 Chevrolet Silverado 2500 HD LTZ
2003-2010 Chevrolet Silverado 2500 HD WT
2001 Chevrolet Suburban 2500 Base
2001-2013 Chevrolet Suburban 2500 LS
2001-2013 Chevrolet Suburban 2500 LT
2007 Chevrolet Suburban 2500 LTZ
2002-2004 GMC Sierra 2500 Base
1999-2002 GMC Sierra 2500 SL
1999-2004 GMC Sierra 2500 SLE
1999-2004 GMC Sierra 2500 SLT
2003-2004 GMC Sierra 2500 WT
2002-2005 GMC Sierra 2500 HD Base
2001-2002, 2006 GMC Sierra 2500 HD SL
2001-2010 GMC Sierra 2500 HD SLE
2001-2010 GMC Sierra 2500 HD SLT
2003-2010 GMC Sierra 2500 HD WT
2001-2013 GMC Yukon XL 2500 SLE
2001-2013 GMC Yukon XL 2500 SLT

Documents: Installation Instructions (PDF)

Which vehicles does this fit?

  • It fits the Chevrolet Avalanche 2500 2002-2006, Chevrolet Silverado 2500 1999-2004, Chevrolet Silverado 2500 HD 2001-2010, Chevrolet Suburban 2500 2001-2013, GMC Sierra 2500 1999-2004, GMC Sierra 2500 HD 2001-2010 and 1 more models. The full year, make, model and submodel list is in the fitment table on this page. This part is for the rear position.

How many are in one order?

  • 1 kit (rear axle).

Are installation instructions available?

  • Yes. The manufacturer instruction PDF is linked under Documents at the bottom of the description.
