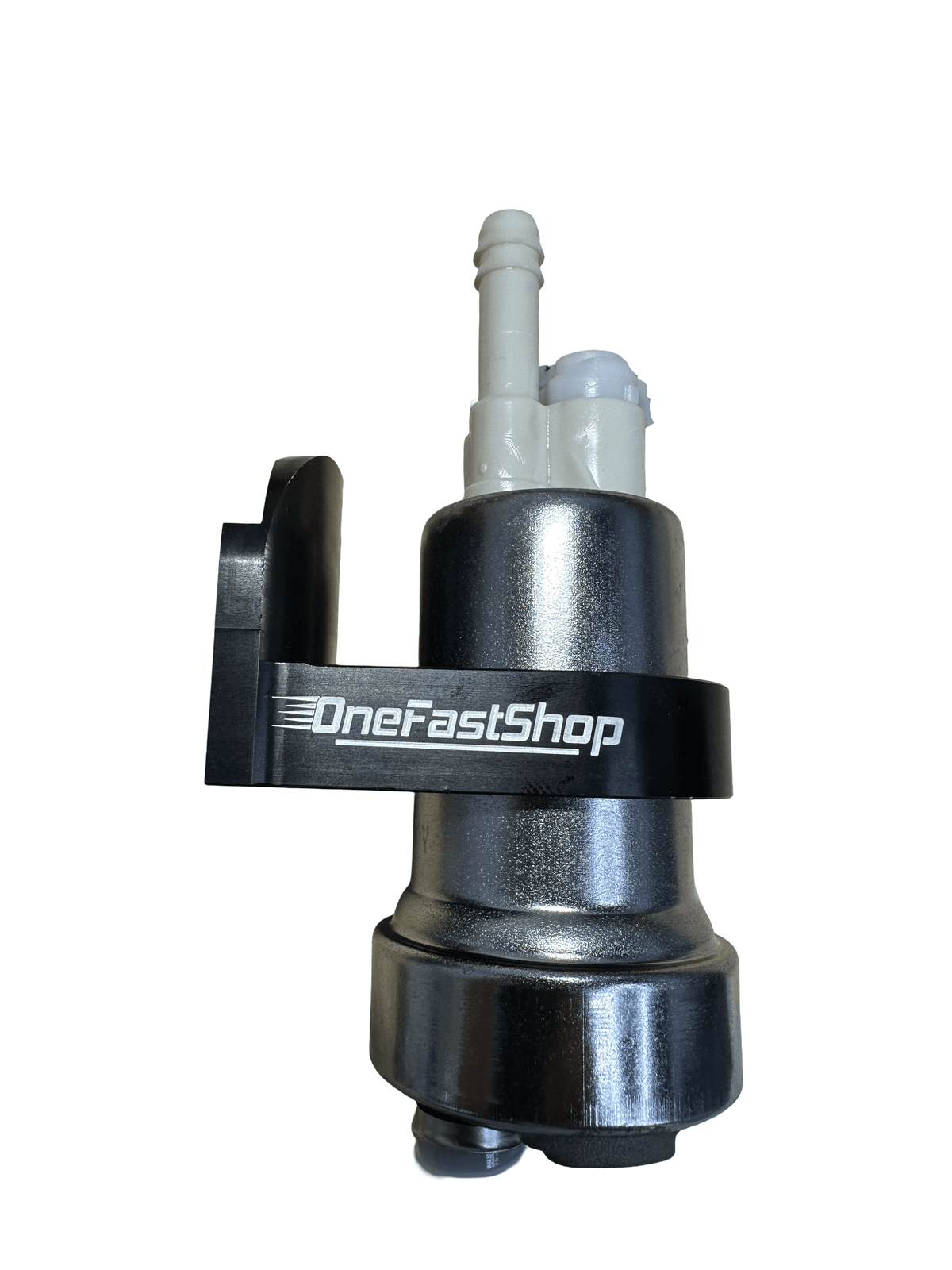

OneFastShop 39mm CNC billet fuel pump bracket clamped on a Walbro 450 525 535 in-tank pump

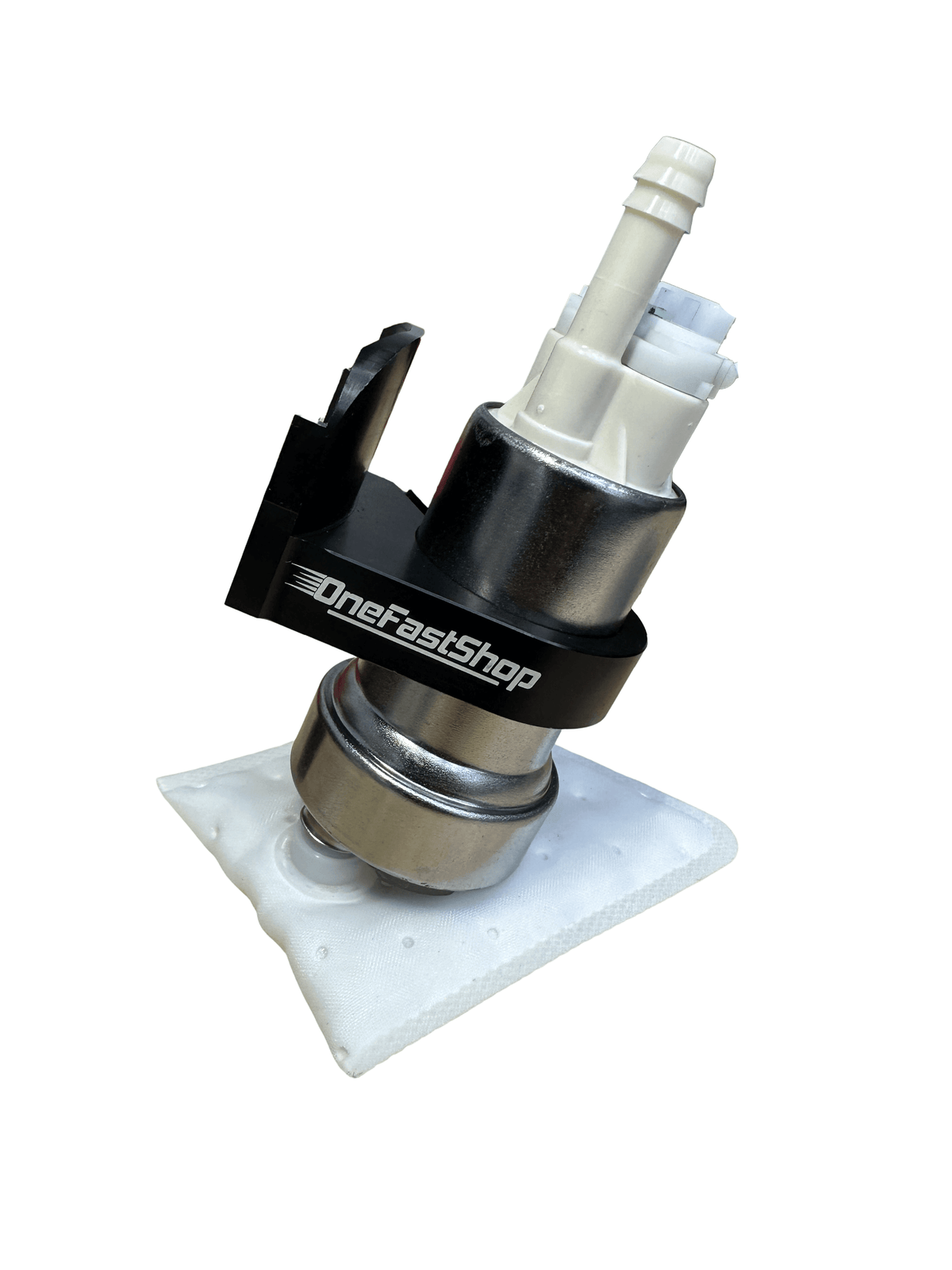

39mm fuel pump bracket mounted on a Walbro pump with strainer, full in-tank assembly

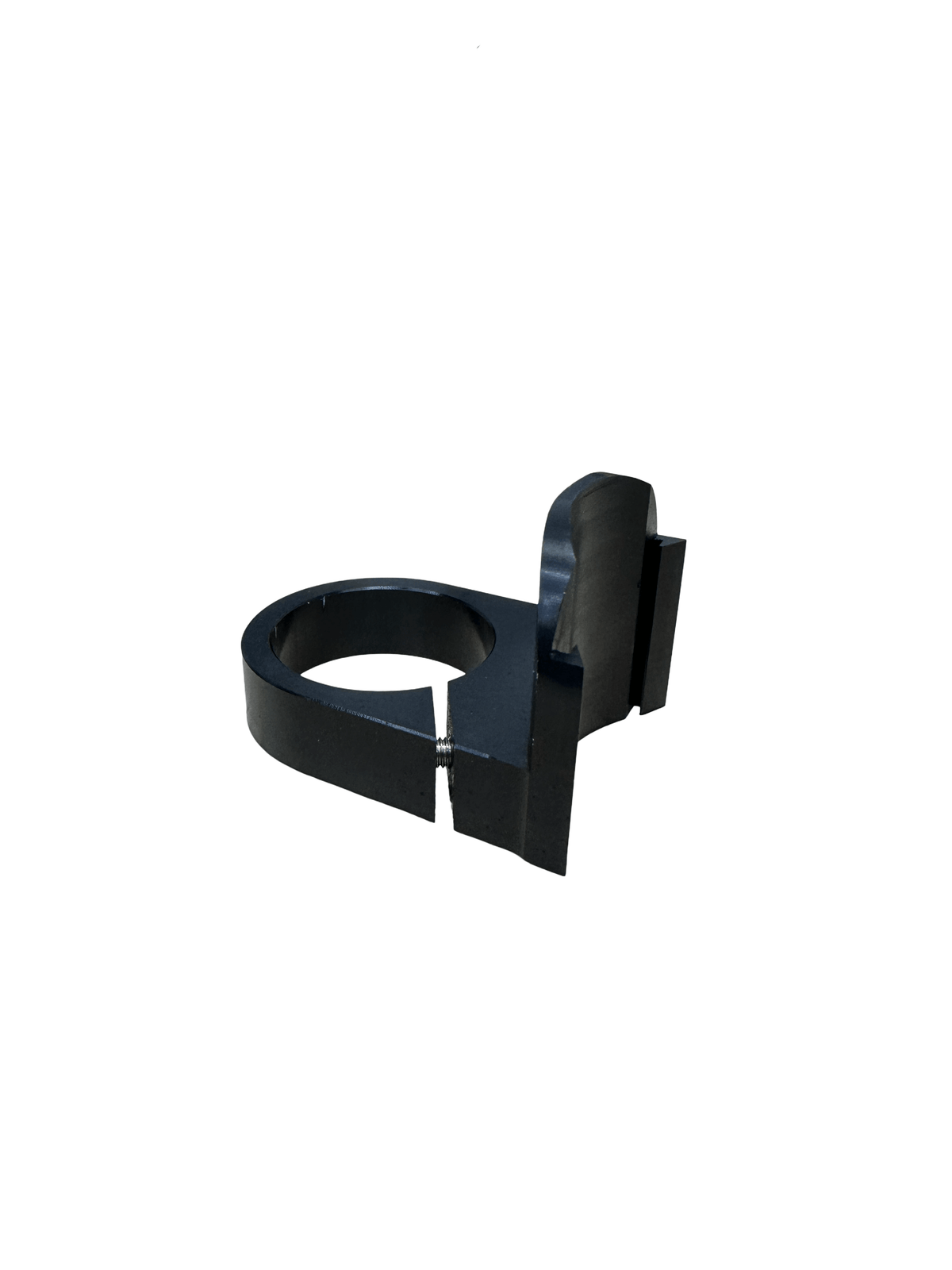

Black anodized billet aluminum 39mm pump clamp bracket showing the pinch set screw and mounting tab

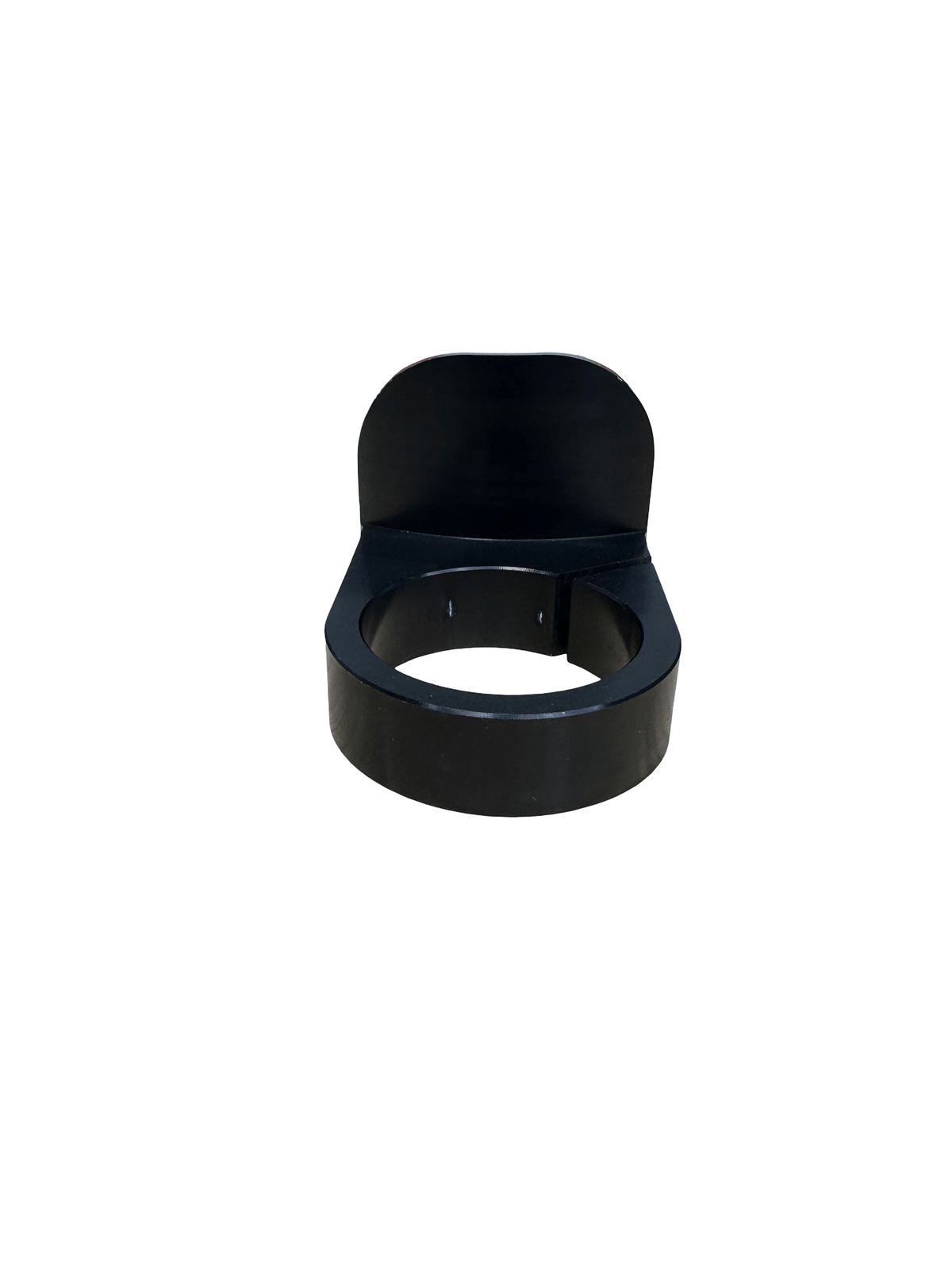

Top view of the 39mm bore CNC billet fuel pump bracket and stainless mounting plate

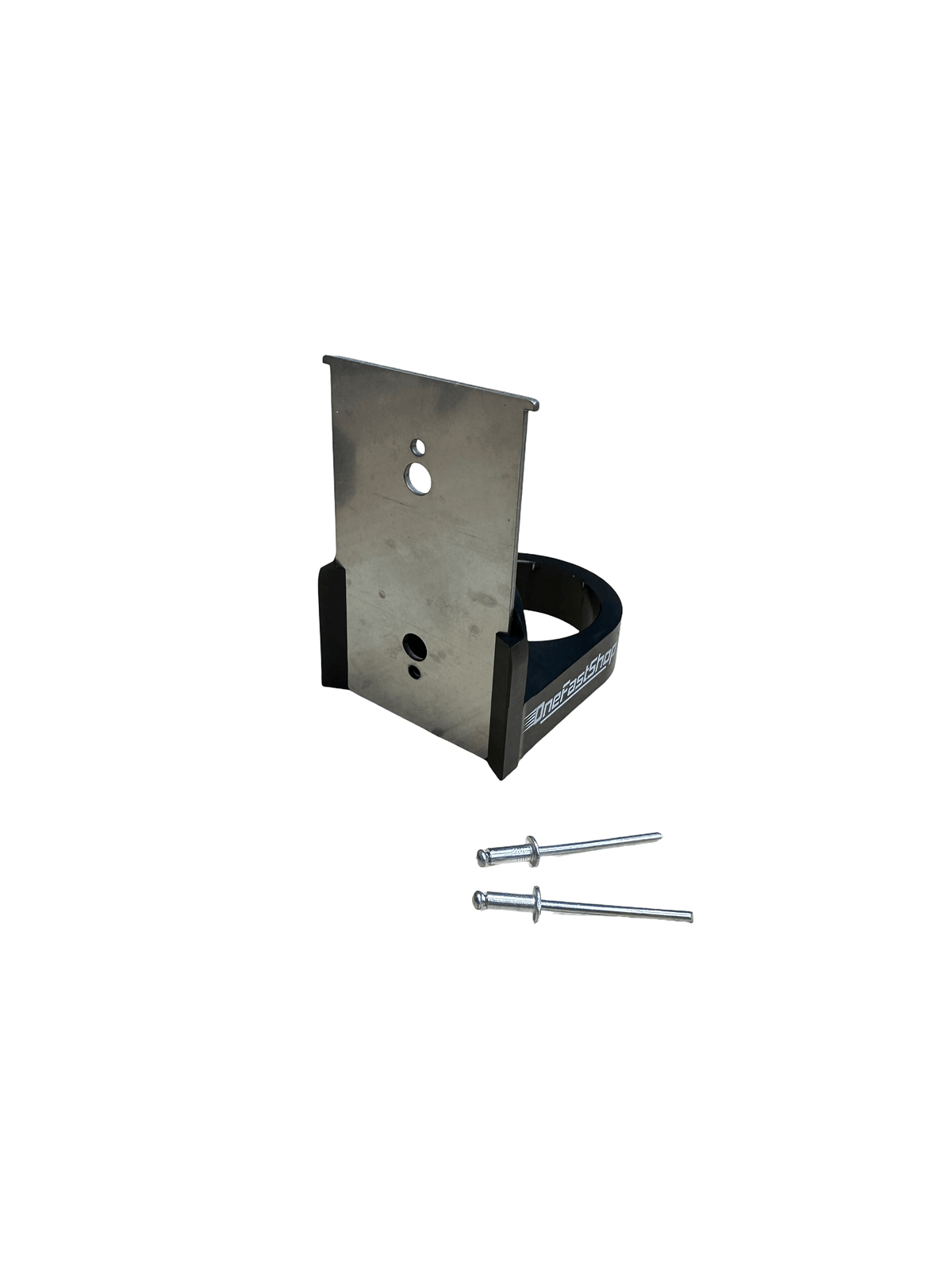

OneFastShop fuel pump bracket kit with stainless steel mounting plate and two aluminum rivets
OneFastShop 39mm CNC billet fuel pump bracket clamped on a Walbro 450 525 535 in-tank pump
39mm fuel pump bracket mounted on a Walbro pump with strainer, full in-tank assembly
Black anodized billet aluminum 39mm pump clamp bracket showing the pinch set screw and mounting tab
Top view of the 39mm bore CNC billet fuel pump bracket and stainless mounting plate
OneFastShop fuel pump bracket kit with stainless steel mounting plate and two aluminum rivets

Fuel Pump Bracket 39mm CNC Billet - Walbro 450 525 535 DeatschWerks

OneFastShop SKU: OFSFPB
Price
41% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

The OneFastShop CNC Billet Fuel Pump Bracket is engineered for precise, vibration-free mounting of any 39mm body in-tank electric fuel pump. CNC-machined from billet 6061 aluminum with a black anodized finish for corrosion resistance, this bracket is built for motorsport, custom fuel system fabrication, and high-power street builds.

An integrated set screw locks the pump body in place to prevent slipping or rotation. A stainless steel mounting plate adds rigidity, and the included aluminum rivets allow a permanent, vibration-resistant installation when fabricating a custom hanger or surge tank assembly.

Key Features

  • CNC-machined from billet 6061 aluminum
  • Black anodized finish for corrosion and wear resistance
  • Integrated set screw locks the pump body in place
  • Stainless steel mounting plate for added rigidity
  • Aluminum rivets included for permanent install
  • Compatible with all standard 39mm in-tank fuel pumps
  • Ideal for surge tanks, fuel cells, and custom hanger fabrication

Pump Compatibility

Designed for any standard 39mm body in-tank fuel pump. Confirmed compatible with:

Brand Pump Part Number
Walbro / TI Automotive 450 LPH F90000267, F90000274
Walbro / TI Automotive 525 Hellcat F90000285
Walbro / TI Automotive 535 Hellcat Plus F90000295
Walbro / TI Automotive 255 LPH GSS340, GSS341, GSS342
Walbro / TI Automotive 350 LPH GSS350G3, GSS351G3, GSS352G3
DeatschWerks DW200 (255 LPH) DW200
DeatschWerks DW300 (340 LPH) DW300
DeatschWerks DW340v (340 LPH variable) DW340v
DeatschWerks DW420 (420 LPH) DW420

Mounting a Walbro 450/525/535? Adapt the pump outlet to 7.89mm quick-connect with the OneFastShop Single or Dual Outlet Fitting.

Specifications

Part Number OFSFPB
Material Billet 6061 aluminum
Finish Black anodized
Pump Compatibility 39mm body diameter in-tank fuel pumps
Mounting Plate Stainless steel
Hardware Set screw and aluminum rivets included
Use Custom hangers, surge tanks, fuel cells, motorsport builds

What's Included

  • 1x CNC billet aluminum fuel pump bracket
  • 1x Stainless steel mounting plate
  • 1x Set screw
  • 2x Aluminum rivets

Fuel pump not included.

Does NOT Fit

This bracket is specifically designed for 39mm body in-tank pumps. It will NOT fit:

  • DeatschWerks DW400 (46mm body)
  • DeatschWerks DW440 (46mm body)
  • Bosch 044 (60mm body)
  • Walbro F2000169 inline pumps
  • Any pump with a body diameter other than 39mm

Verify your pump's body diameter (listed in the manufacturer specs) before ordering.
